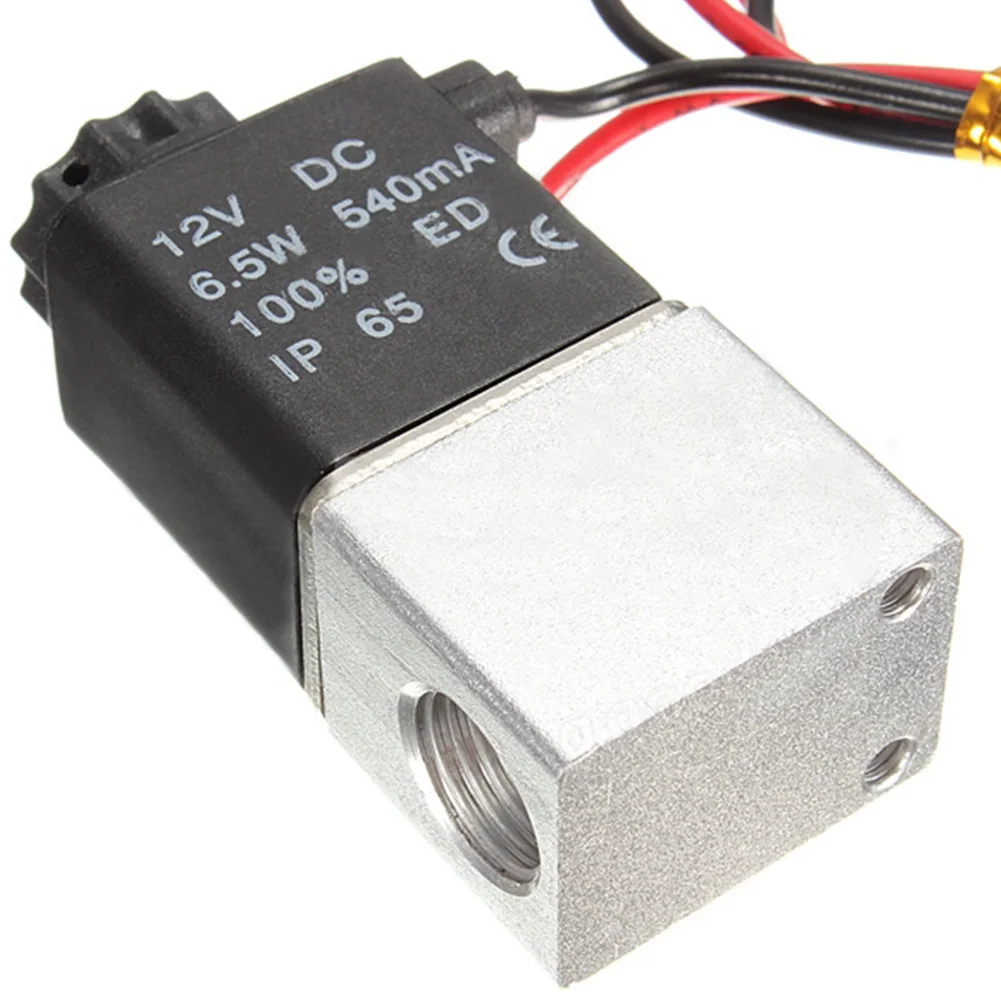

12V DC 1/" 2 способ нормально закрытый пневматический Алюминиевый Электрический соленоид воздуха

Description

WIC 2K series 2-way normally closed solenoid is to control On/Off of air and inert gas.

This solenoid has one 1/4" inch NPT inlet and one 1/4" inch NPT outlet port.

stays close when the coil is de-energized, and it opens when energized.

Has two holes in the bottom and can be mounted in any position.

Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized.

2K Series is a Zero differential solenoid which can be operated at 0 PSI (Vuum). WIC is compatible with SMC s.

Specification

Model Number : 2K-1/4-12VDC-G

Type : 2 Way Normally Closed ( opens with energized)

Service Media : Air, Gas, Liquid, Water

Operation Model : Direct ting

Flow Model : -Directional

Flow Rate : 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)

Response Time : Less than 20 ms

Body Material : Anodized Aluminum

Seal Material : NBR (Buna N)

Armature Tube Material : Brass

Plunger & Spring Material : Stainless Steel

Coil Certification : CE Certification

Coil Power : 6.5W

Coil Class : F Class IP 65 (CE Certification)

Coil Duty : 100% ED (Continuous Duty)

Operating Pressure : Vuum to 115 PSI

Operating Temperature : -5 to 80 °C

Port Size : 1/4" Inch NPT Female Port

Coil Voltage : 12V DC

Voltage Tolerances : DC : +10% –5% ; : +10% -15%

Electrical Connection : Grommet Coil with 12" Lead Wire

Pkage includes:

1 x 1/4inch DC 12V Electric Solenoid Air
