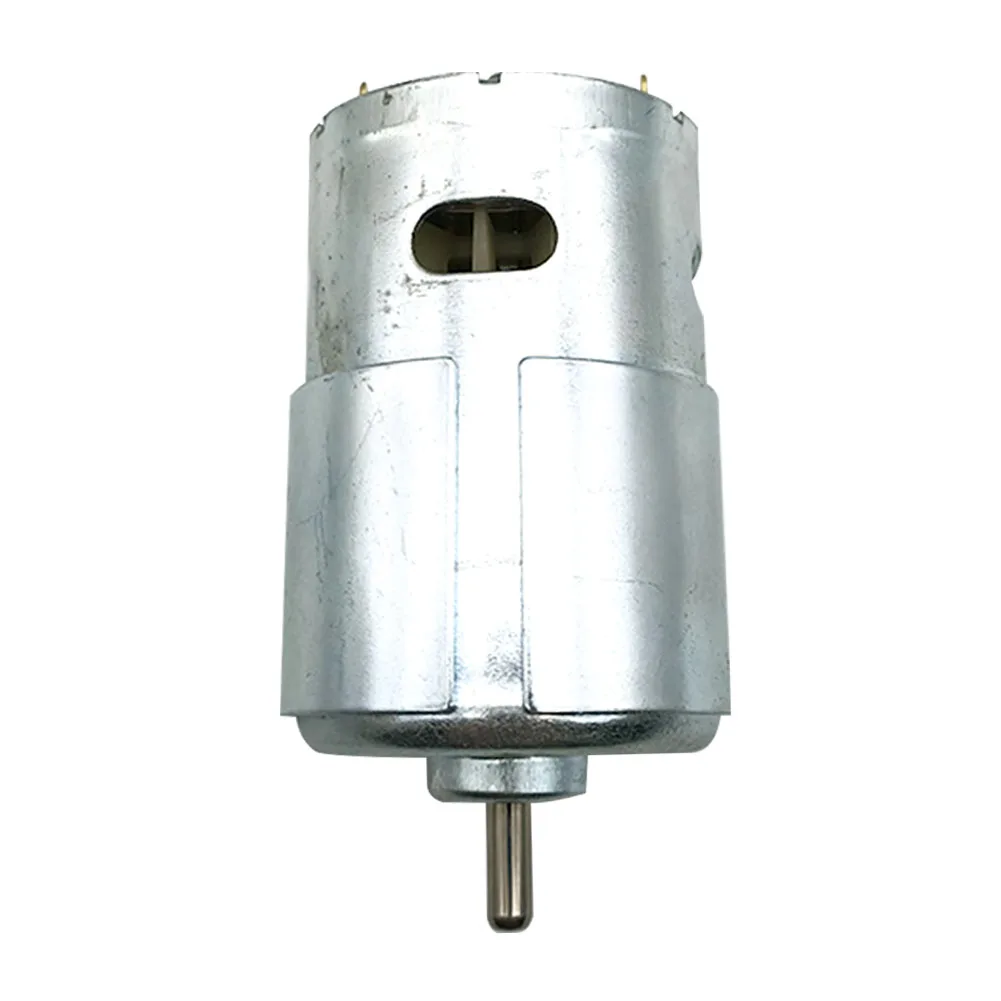

895 Миллер мини низкоскоростной червячный кронштейн редукционный крутящий момент мотор-редуктор шариковый высокий большой гравировальный подшипник Электрический DC 12 V-24 V

Features:
Starting current needs to above 10A.
Double ball bearings, high speed, large torque, low noise.
There is a built-in cooling fan.
3000rmp at 12V, maximum torque 5.2 kg, 6000 rpm at 24V, maximum torque 10 kg
Suitable for mini cutting machine, sanding machine, lathe tool, miller, polishing machine, electric grinder, engraving machine, etc.

Specification:
Color: silver
Material: metal
Size: about 48 x 72 mm
Rated voltage: DC12V -24V
Turn: positive and negative
Motor step height: about 4.5mm
Motor step diameter: about 18mm
Motor diameter: about 48mm (plus magnetic ring 50MM)
Shaft diameter: about 5mm
Motor tail shaft length: about 6mm
Pitch of mounting hole: about 29mm
Screw hole for mounting hole: M4 screw and M5 screw

Package include:
1pc x Torque Gear Motor

Notice:
Due to the light and screen difference, the item's color may be slightly different from the pictures.
Please allow 0.5-2cm differences due to manual measurement.
