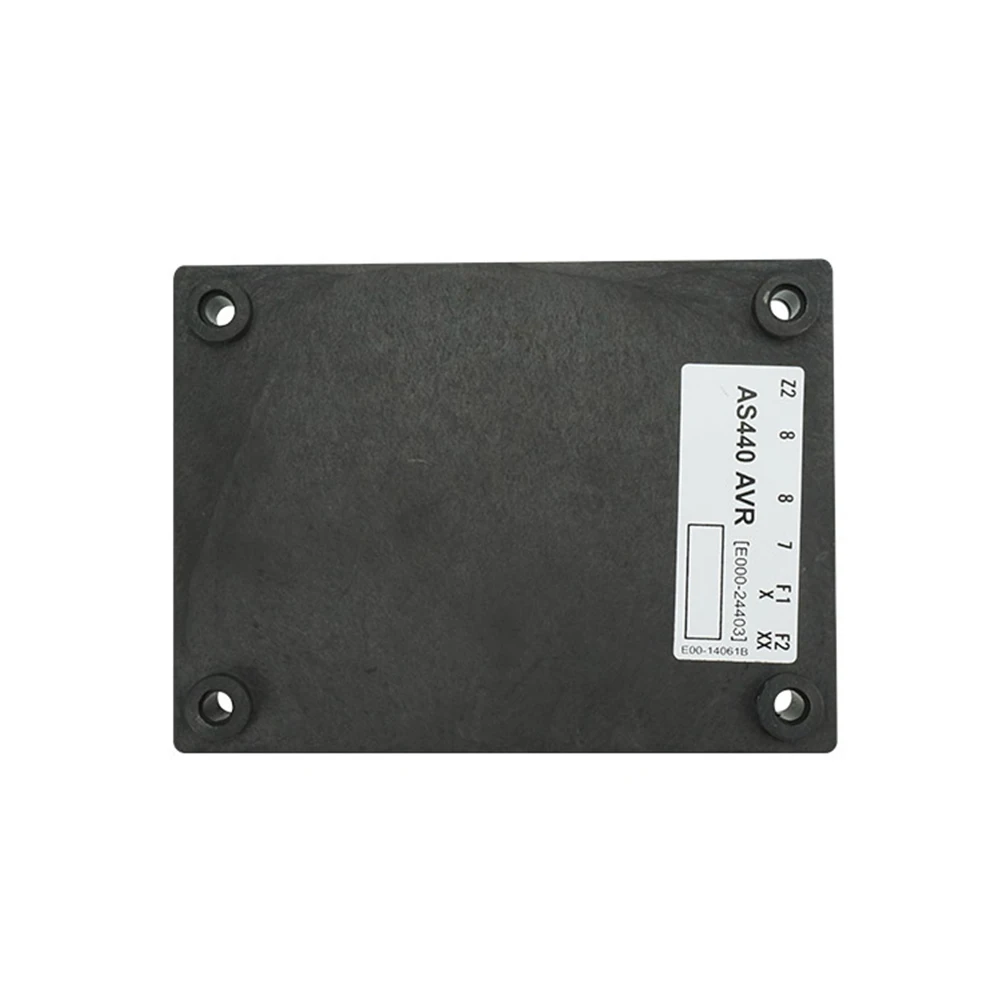

AVR AS440 контроллер бесщеточный генератор схема Универсальная замена автоматический регулятор напряжения генераторный модуль (от 1563 руб.)

Описание

Features:
1. AS440 is a half wave phase controlled thyristor type AVR and forms part of the excitation system for a brushless generator.
The design employs Surface Mount Technology (SMT) for high integration of features in a small footprint AVR.
2. Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR.
3. The power and voltage sensing circuits have separate terminals, allowing the excitation power to be derived directly
from the stator winding for basic applications or from an auxiliary winding if sustained short circuit performance is required.
4. The AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/- 1.0%.
5. The AVR voltage sensing terminals continuously sample the output windings for voltage control purposes.
In response to this sample voltage, the AVR controls the power fed to the exciter field, and hence the main field,
to maintain the machine output voltage within the specified limits, compensating for load, speed, temperature and power factor, of the generator.
6. Over excitation conditions are limited to a safe period by a protection circuit within the AVR.
Specifications:
Model: AS440
Material: plastic
Color: black
Adjustable: 50HZ 60HZ
Power input: voltage 120 ( 95-132 ) / 240 ( 190-264 ) VAC single phase two line
Magnetic field output: voltage 207VAC, maximum 90VDC input
Current: 4A continuous, 10A in 10 seconds without discontinuity
Pressure regulation accuracy: <±1% RMS (with generator speed variation within 4%)
Package Included:
1 PC x Generator Voltage Regulator
1 PC x English Manual
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
