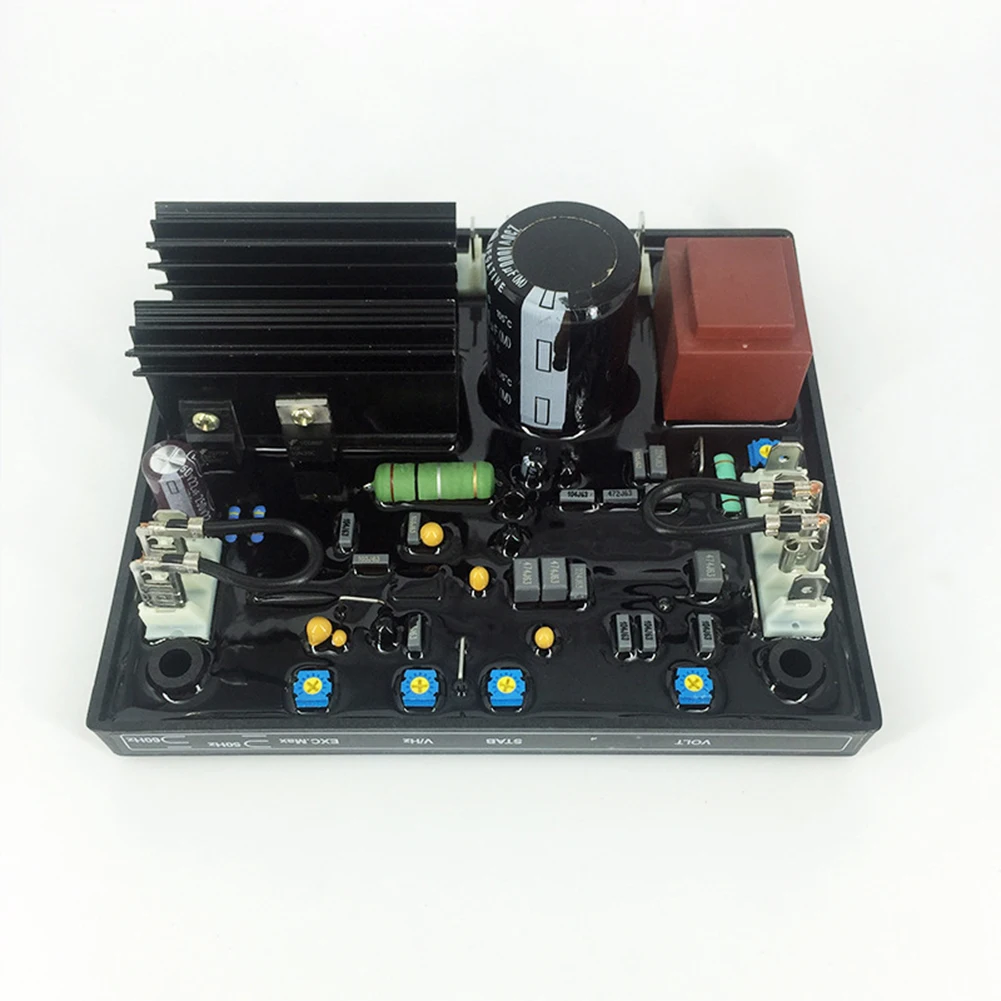

AVR R438 автоматический регулятор напряжения Замена низкая скорость аксессуары инструмент стабилизатор отдельные компоненты для Leroy Somer

Descriptions:
The R438 voltage regulator module can be powered by AREP or PMG field excitation system.
95-480V automatic voltage regulator is must-have item for your brushless generator, suitable for for Leroy Somer.
Voltage regulation ±0.5% at steady state and constant speed, phase to phase voltage sensing.
Controls by transistor means the regulation quality is independant of load applied.
Integrated "LAM" system to cope with increased loads applied to the engine, suitable for high levels of viration and harsh environments.
The R438 is compatible with other modules giving additional functions. Compatible with the AREP or PMG exitation system.
Electronic protection(overload,shortcircuit on opening of voltage sensing circuitexcitation overload current for 10 seconds
then return to approximately 1A).
Normal or rapid response time via ST2 jumper, voltage adjustment via potertiometer P2, quadrature drop adjustment via potertiometer P1,
max, excitation current adjustment via P5
Specifications:
Material: plastic, metal
Main color: black
Size: about 16.5x12x6.5cm
Fitment: for Leroy Somer
Power input: 35-75VAC (PMG, or auxiliary winding, single, three-phase)
Induction detection: 90-480VAC
Maximum output: DC 8A, 75V
Adjustment rate: better than 0.5%
Standard power supply: AREP or PMG
Rated overload current: 8A-10s
Voltage sensing: 5VA isolated via transformer
0-110V terminals=90-140V
0-220V terminals=170-260V
0-380V terminals=340-520V
Voltage regulation: ±1%
Current sensing(parallel operation): C.T. 2.5VA cl1, sencondary 1A(optional)
Applications to alternators: LSA 42.2, 43.2, 44.2
Package Included:
1pc x voltage regulator
1pc x English user manual
Note:
1. Due to the light difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
