Описание
Features:Easy Install: Just plug and play, easy to install and use.
Good Material: Made of plastic and metal, durable and hard to break.
Signal Improve: Can be used for improving signal and etc..
Replacement Part: Can replace the damaged or old module.
Applicable Usage: Suitable for home, meeting room and so on.
Usage:
LIN: Audio input, connected to the left channel of the headphones.
RIN: Audio input, connected to the right channel of the headphones.
Vin: The power supply voltage is 3-5VDC.
GND: Ground.
3V0: This is the regulator interface, connected to 3.3V, if you need 100mA of 3 volts, you can use this adjustment to adjust the voltage.
RST: Reset.
CS: Select pin for spi mode. The i2c address is determined. When connected high (default), the i2c address is 0x63. If grounded or shorted, the i2c address is 0x11.
SCL: Clock pin, connected to the microcontroller.
SDA: Data pin, connected to the microcontroller.
GPIO: Can be used to flash the LED, the initial state has been set, 3V output.
Specifications:
Material: Plastic+Metal
Color: Blue
Package Included:

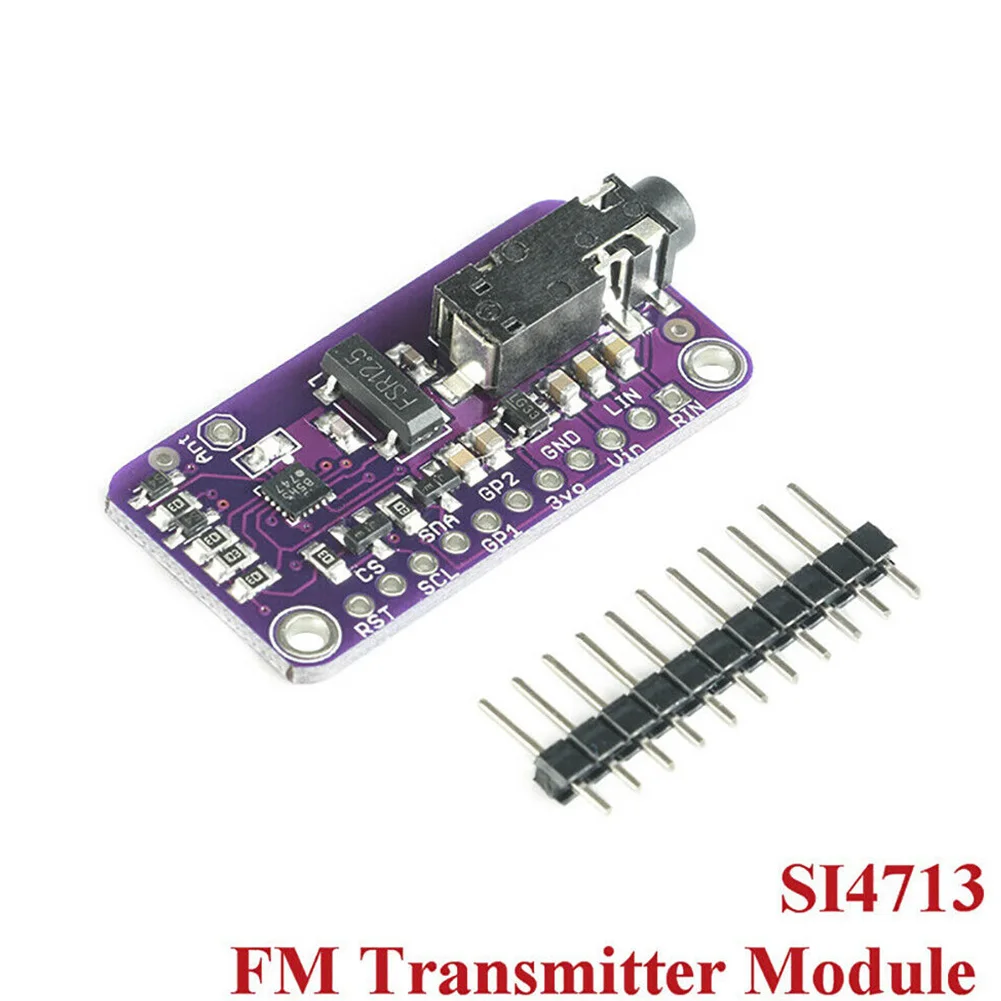

1 pc* FM Transmitter Module
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
Характеристики
- Бренд
- Woopower
- Напряжение
- 5 В
- Тип материала
- Plastic And Metal
- Особые характеристики
- None
