Описание

Portable design and simple operation. Two strong magnets are built in the side and the bottom surface, which is convenient to measure the horizontal and vertical.
High accuracy and resolution.
Degree and Percentage of slope in conversion.
Color: orange + silver
material: plastic
Absolute & relative measurement modes.
Large and clear LCD display.
Measured data hold.
Calibrate button to calibrate the meter to any reference surface.
Displayed readings remain upright to enable easy viewing at all angles.
Applications:
Drive line Measurement.
Race car wing and chassis adjustment.
Wheel alignment.
Drainage angles and run-off slopes.
Tool setting on Lathes.
Setting blade angle of Circular Saws/Miter Saws.
Setting work piece angle for milling.
Platform monitoring.
Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table.
You can even put it into your clothing pockets for field works.
Two strong magnets are built in the side and the bottom surface
Range: 0 ~ 90° x 4 quadrants (360°)
Resolution: 0.1°
Operating Temperature: 0 ~ 40 ℃
Operating Humidity: 40 ~ 80% RH
Power: 3 x 3V CR2032 Batteries(Included)

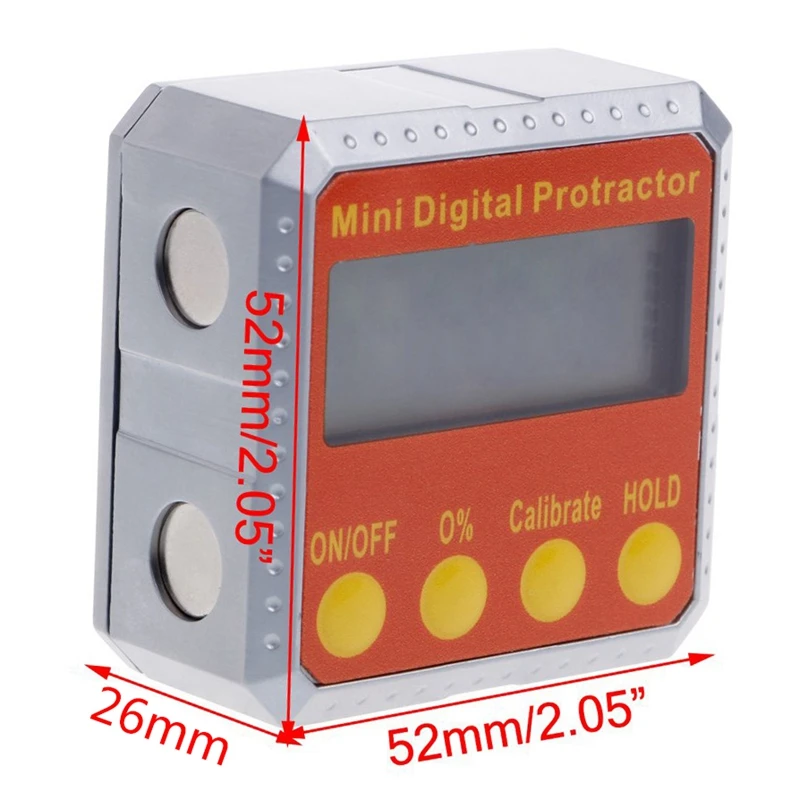

Dimensions: approx. 52 x 52 x 25 mm/2.04 x 2.04 x 0.98 inch
Note:
1. The battery should be taken out for storage if the instrument will be kept idle for a long time period.
2. Since this product was only applies to two-axis measurements, in the third axis ( foot level front and back side) and at the horizontal angle was less than 45 °, the LCD will display an error message "Err".
Package Contents:
1 Pc x Digital Protractor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
High accuracy and resolution.
Degree and Percentage of slope in conversion.
Color: orange + silver
material: plastic
Absolute & relative measurement modes.
Large and clear LCD display.
Measured data hold.
Calibrate button to calibrate the meter to any reference surface.
Displayed readings remain upright to enable easy viewing at all angles.
Applications:
Drive line Measurement.
Race car wing and chassis adjustment.
Wheel alignment.
Drainage angles and run-off slopes.
Tool setting on Lathes.
Setting blade angle of Circular Saws/Miter Saws.
Setting work piece angle for milling.
Platform monitoring.
Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table.
You can even put it into your clothing pockets for field works.
Two strong magnets are built in the side and the bottom surface
Range: 0 ~ 90° x 4 quadrants (360°)
Resolution: 0.1°
Operating Temperature: 0 ~ 40 ℃
Operating Humidity: 40 ~ 80% RH
Power: 3 x 3V CR2032 Batteries(Included)
Dimensions: approx. 52 x 52 x 25 mm/2.04 x 2.04 x 0.98 inch
Note:
1. The battery should be taken out for storage if the instrument will be kept idle for a long time period.
2. Since this product was only applies to two-axis measurements, in the third axis ( foot level front and back side) and at the horizontal angle was less than 45 °, the LCD will display an error message "Err".
Package Contents:
1 Pc x Digital Protractor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

|

ВсеТовар мы можем отгрузить в течение 5-8 рабочих дней, обычно мыВ зависимости от времени заказа клиента для упаковки и отгрузки, мы должныВнимательно проверьте качество товара перед отправкой, поэтому ВозьмитеВремени, чтобы справиться с этим. Время доставки: Из-заК факторам форс-мажорных обстоятельств: ураганы, дождевые штормы влияют на полеты. ВедущийДля того чтобы логистика задержки. Мы честные продавцы, не дадим вам страдатьПотери. Пожалуйста, дайте логистической компании немного времени на обработку, мыПодождите, пока посылка дойдет до вашей стороны. Если ваша информация о логистике поступает в местное почтовое отделение: В том случае, еслиМестное почтовое отделение не свяжется с вами, пожалуйста, свяжитесь с вашимМестное почтовое отделение как можно скорее, чтобы получить посылка. В противном случаеСверхурочное получение посылок, местное почтовое отделение вернет вамПосылка, ответственность за себя. Время защиты заканчивается: В тех случаях, когдаМы закончили время отгрузки, если срок защиты продуктаНа исходе, пожалуйста, увеличьте срок защиты продукта самостоятельно илиСвяжитесь с нами, пожалуйста, не открывайте спор напрямую. Ввозные таможенные пошлины: НалогиИ сборы не включены в стоимость товара или стоимость доставки.Ответственность за эти расходы несет покупатель. Ввозные пошлины, налоги иРасходы не включены в стоимость товара или стоимость доставки. ЭтиРасходы оплачиваются покупателем




Если товар поврежден, мы должны связаться в течение 24 часов с момента получения.
Если данный товар находится в вашем распоряжении более 7 дней, он считается пользованным товаром, и мы не производим возврат или замену. В том случае, еслиВы не удовлетворены полученным товаром (неправильный, поврежденный,Дефект, или товар не соответствует описанию), пожалуйста, верните его в течение 7 дней дляЗамена или возврат денег.Для любогоЛичные причины (выбрать не нравится или мне не нужен этот продуктБольше), возврат расходы по доставке будет нести ответственность покупателя. МыНе принимаются какие-либо предметы с запахами (духи. Дым, и т. Д.)
ВсеВозвращенные товары должны быть в оригинальной упаковке, и вы должны предоставитьНам с номером отслеживания доставки, конкретной причиной возврата,И ваш заказ ID.Характеристики
- Бренд
- MiLESEEY
- Номер модели
- Digital Protractor
- Индивидуальное изготовление
- Да
