Детектор пробоя проверка Оптического Волокна Идентификатор живой портативный диапазон волны тестирование инструмент 800nm-1700nm пластик высокая производительность

Features:
Identify Sounds: Approximate core strength. It can identify 3 common test sounds.
Easy Operate: Compact and practical, very easy to operate, low error detection and ins.
Quickly Identify: It can quickly identify the direction of transmission fiber and display relative core power.
Multi Function: Leading business simple test identification, direct, convenient, efficient, sending sound and light alarm.

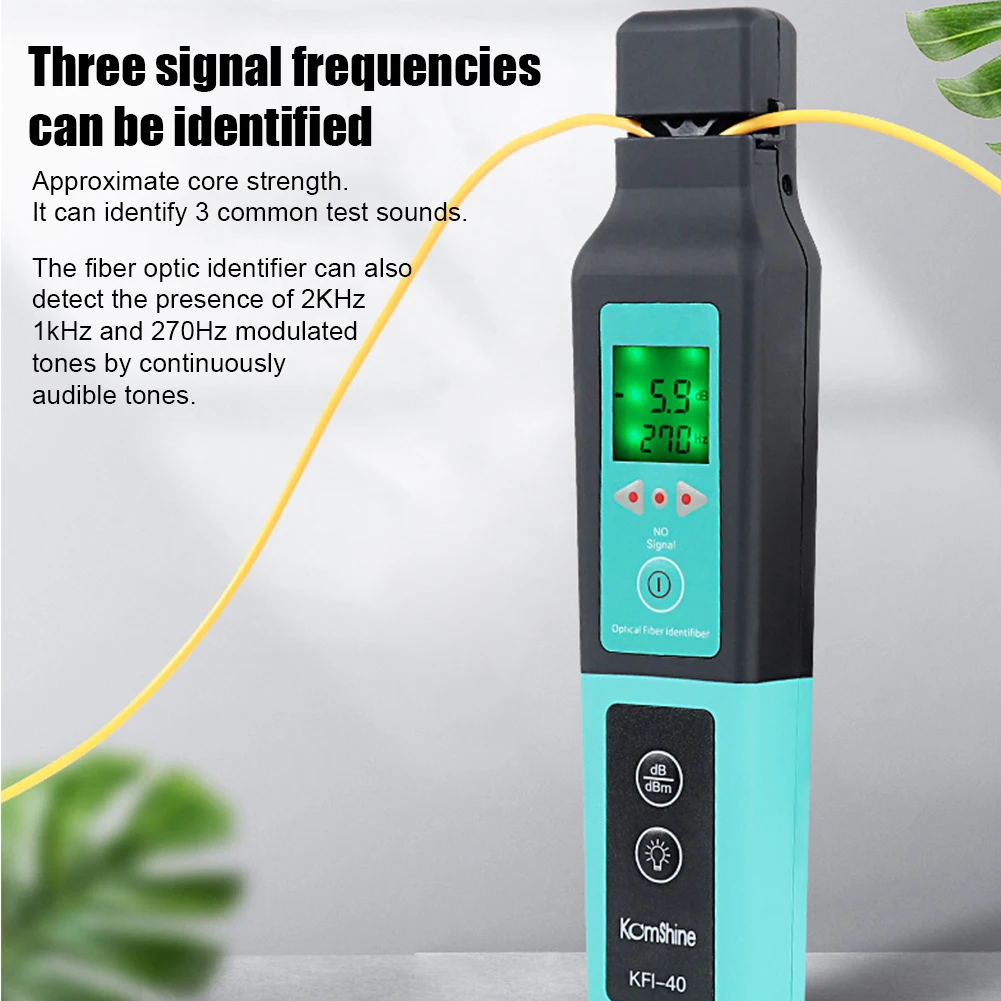

Audible Tones: The fiber optic identifier can also detect the presence of 2KHz, 1kHz and 270Hz modulated tones by continuously audible tones.
Specifications:
Material: Plastic
Color: As Picture
Product Size(about): 230*43*48mm
Wavelength Recognition Range: 800nm To 1700nm
Signal Recognition Type: CW, 270 Hz±5%, 1 Khz±5%, 2 Khz±5%d
Detector Type: Φ1mm InGaAs 2 Pcs
Fit Fiber Type: Universal Φ0.25 (Bare Fiber), Φ0.9, Φ2.0, Φ3.0 Fiber
Signal Direction: Led Indicator Indicates The Left And Right Direction
Optical Power Reading Range: -40 Dbm To 10 Dbm
Signal Frequency Range: 270hz. 1khz. 2khz
Power Supply Type: AA Battery*2(not include)
Operating Temperature Range: -10℃ To 60℃
Storage Temperature Range: -25℃ To 70℃
Package Included:
1 x Optical Fiber Identifier
1 x Storage Bag
1 x Manual
