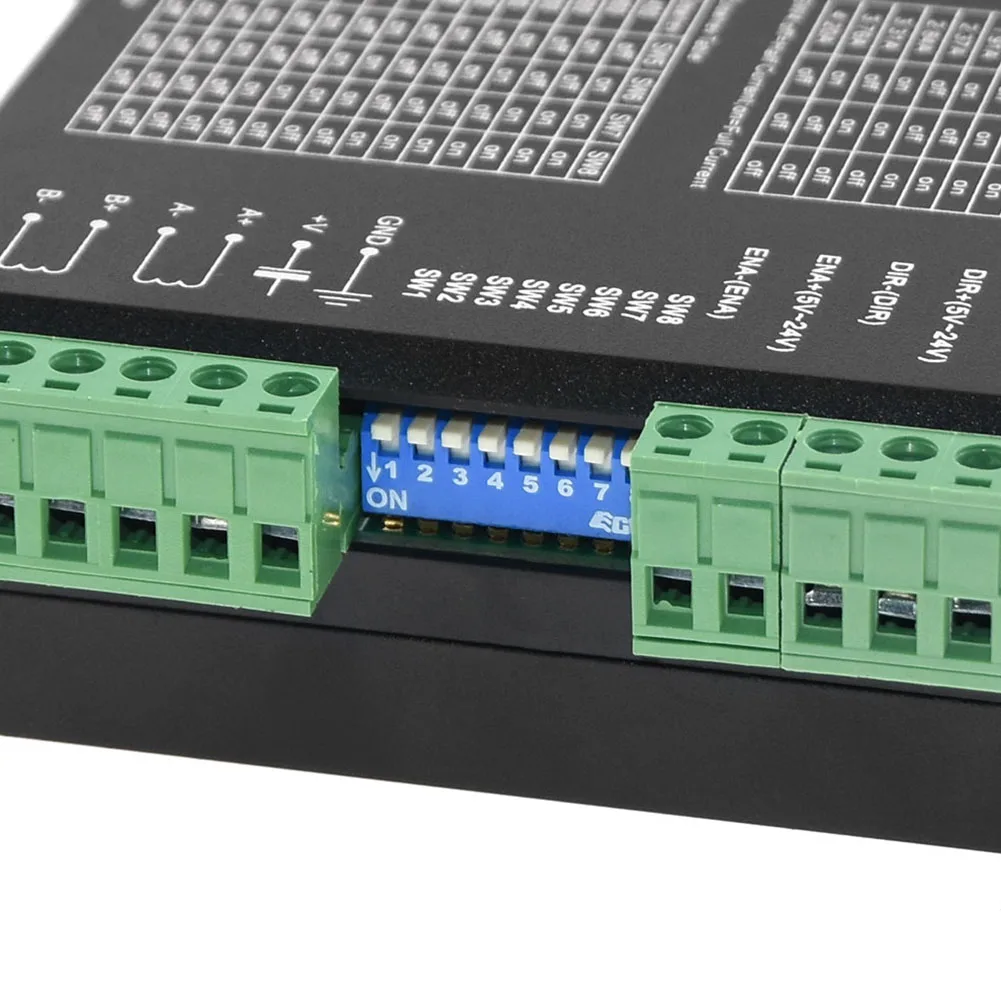

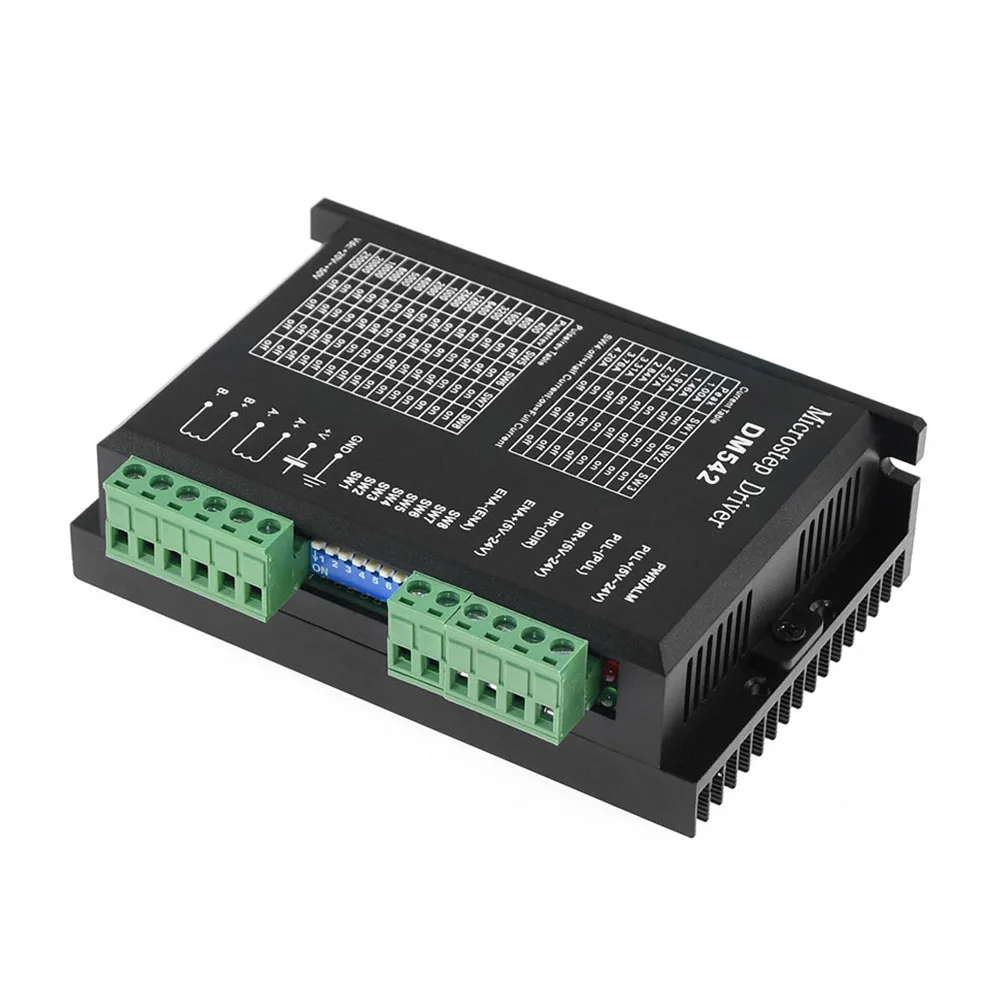

Драйвер шагового двигателя Гибридный Защита от перенапряжения петля скорость мини дисплей микро шаг цифровая плата автоматическая для Nema 17 23 24

Description:
1. Auto-identification and parameter auto-configuration when power on.
2. Anti-resonance provides optimal torque and nulls mid-range instability.
3. Automatic idle-current reduction, suitable for 2-phase and 4-phase motors.
4. Multi-stepping allows a low resolution step input to produce a higher microstep output.
5. Over-voltage and current protection. Soft-start with no “jump” when powered on.
Specifications:
Feature: digital
Color: as shown
Highest output current: 1.0 ~ 4.2A
Input voltage: +20 ~ 50VDC
Logic signal current: 7 ~ 16mA
Pulse input frequency: 0 ~ 200kHz
Pulse width: 2.5μS
Isolation resistance: 500MΩ
Cooling: natural cooling or forced cooling
Environment: avoid dust, oil fog and corrosive gases
Ambient temperature: 0℃ ~ 65℃
Humidity: 40%RH ~ 90%RH
Operating temperature: -10℃ ~ 45℃
Vibration: 10-55Hz / 0.15mm
Package Included:
1PC * Stepper Motor Driver
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2cm differences due to manual measurement.
