DSO168 50 MS/s осциллограф Многофункциональный 20 МГц Карманный Высокая точность электронный цифровой накопитель частота дискретизации дисплей ручной

Description:
With memory compression technology, when waveform refresh, screen does not flicker.
Battery/USB power supply, built-in 800 mAh battery and intelligent charge management.
20 MHz analog bandwidth and 50 MS/s sampling rate.
High measurement voltage range: 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V.
Frequency can be displayed, Vmax, Vmin, Duty, Vrms, Vpp.
Specificatio:
Product name: Oscilloscope
Color: White
Analog band width: 20 MHz
Maximum real time sampling rate: 50 MS/s
Vertical seitivity: 50 mV/div ~ 200 V/div
Horizontal time base range: 100 mS/div ~ 100 /div
Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
Storage depth: 384 KB
Input resistance: 1M
ADC accuracy: 8 bits
Coupling mode: DC
Trigger mode: Continuous
Trigger edge: Ascending/Descending edge
External trigger voltage: 0-40 V
Display: TFT color display
Battery: 1 x 800 mAh battery (Built-in)
Size: About 73 x 55 x 10 mm

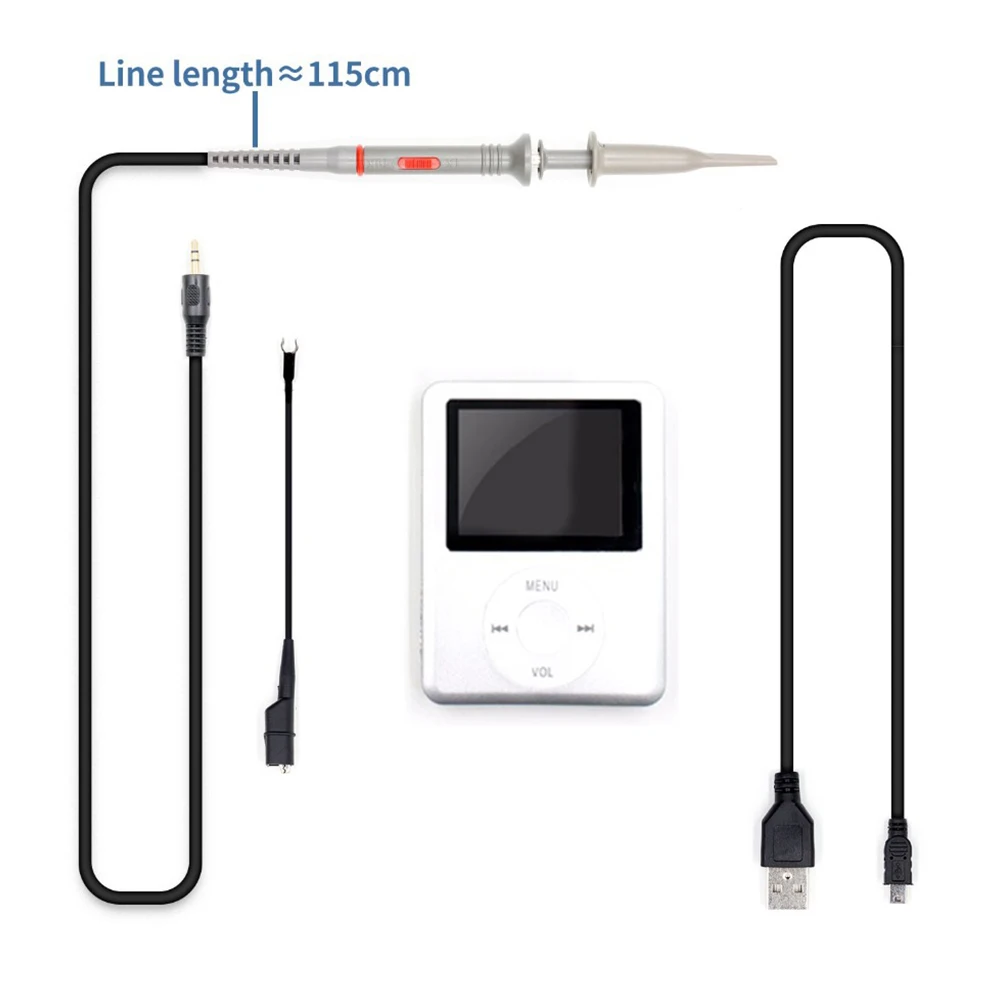

Package Included:
1 PC* Oscilloscope
1 PC* BNC switch head
1 PC* USB cable
Note:
Traition: 1cm=10mm=0.39inch.
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 0.5-2 cm differences due to manual measurement.
