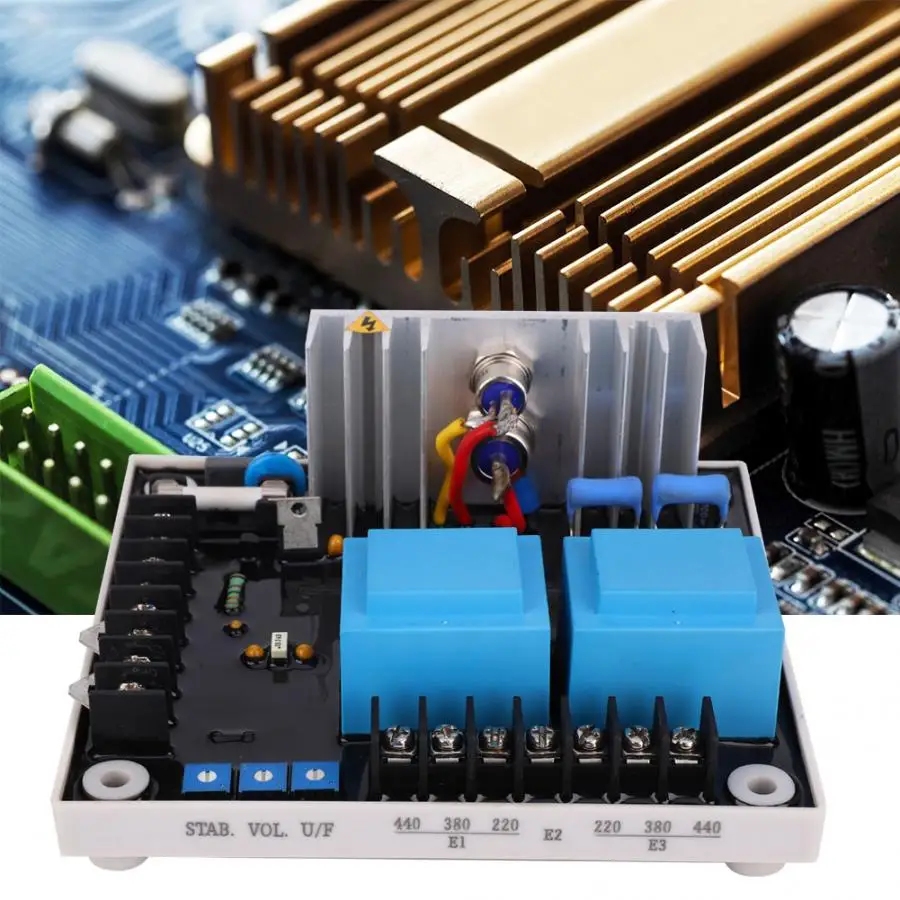

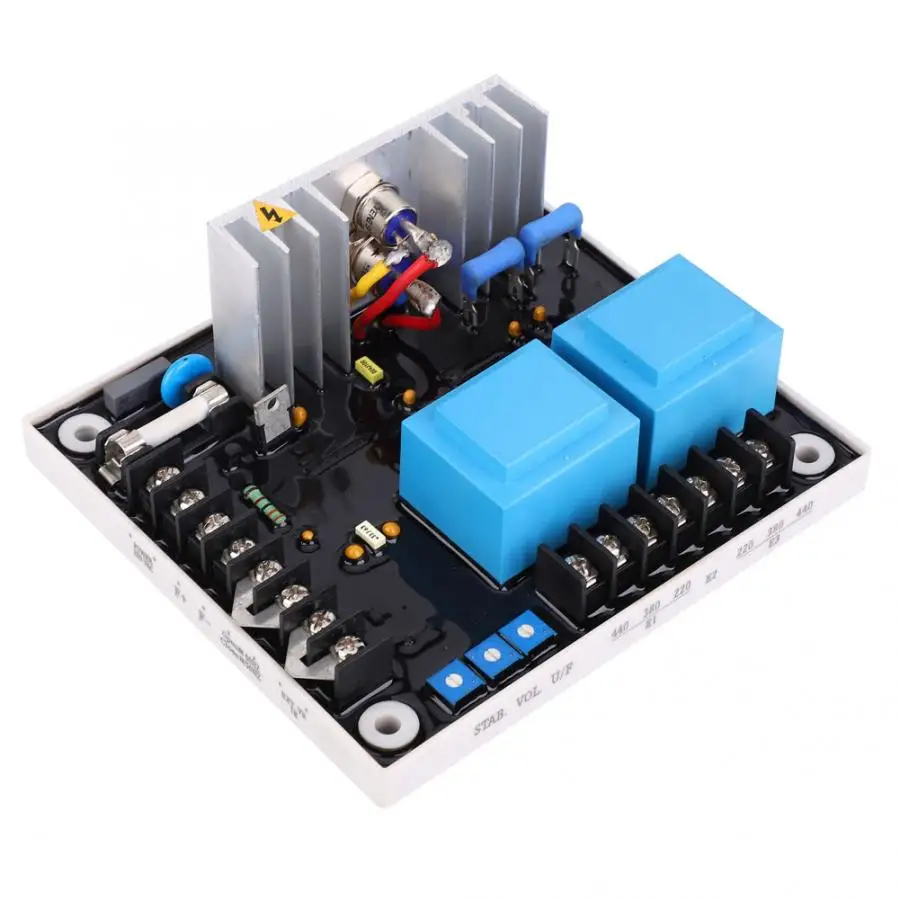

EA15A-3H генератор автоматический регулятор напряжения AVR бесщеточный генератор запчасти карбюратора для генератора

Описание

EA15A-3H генератор автоматический регулятор напряжения AVR бесщеточный генератор запчасти карбюратора для генератора

Особенности:

1. Скорость регулировки напряжения <± 1%.
2. Встроенный интегрированный тип полный полнопериодный выпрямитель.
3. Максимальное магнитное поле вывода напряжения до 170в постоянного тока.
4. Если вам нравится 50/60Hz Частотный с перемычкой.
5. С низкой частотой защиты и напряжением медленной функции строительства.
6. Светодиодный индикатор показывает источник питания и низкочастотный статус.
7. Регулируемое напряжение, стабильность и низкие частоты защиты.

Параметры:

Тип изделия: EA15A-3H автоматический регулятор напряжения

Частота: 50/60 Гц (выбрано с перемычкой)

Обнаружение и входное напряжение питания: 100 ~ 300 В переменного тока однофазный двухпроводной

Excitation Field Output: Voltage: Maximum 90VDC at 240VDC input, Current: 15A continuous, non-continuous 20A within 10 seconds, Resistance: Minimum 9Ω at 35VDC';font-family:'meiryo>';font-family:'meiryo>

Voltage Regulation Accuracy: <±0.5% (engine speed changes within 4%)';font-family:'meiryo>';font-family:'meiryo>

Voltage Establishment: Need to remain magnetic voltage of 5VAC or more at the AVR input terminal';font-family:'meiryo>

Регулировка внешнего напряжения: ± 15% с 5KΩ 1 ватт потенциометра';font-family:'meiryo>';font-family:'meiryo>

Мощность Потребляемая мощность:. 10 Вт';font-family:'meiryo>

Temperature Stability: Every °C change, voltage drift 0.03%';font-family:'meiryo>';font-family:'meiryo>

Low Frequency Protection: 60Hz system turning point is 55Hz (turning point is the factory setting value)';font-family:'meiryo>';font-family:'meiryo>

50Hz system turning point is 45Hz (turning point is the factory setting ';font-family:'meiryo>value)

Напряжение';font-family:'meiryo>МедленныйВремя строительства: 2 секунды

Operating Temperature: -40~70 °C';font-family:'meiryo>';font-family:'meiryo>

Storage Temperature: -40~85 °C';font-family:'meiryo>';font-family:'meiryo>

Relative Humidity: 95% or less';font-family:'meiryo>';font-family:'meiryo>

Vibration: 3.3G 100~2KHz';font-family:'meiryo>';font-family:'meiryo>

VOLT: Adjust voltage';font-family:'meiryo>';font-family:'meiryo>

STAB: Adjust stability';font-family:'meiryo>';font-family:'meiryo>

U/F: Adjust the low frequency protection turning point';font-family:'meiryo>

DROOP: Adjust the pressure drop

Package List:

1 x Automatic Voltage Regulator
