EM125 инструменты цифровой профессиональный ручной многофункциональный ЖК-экран Высокая скорость точный портативный осциллограф простое использование стабильный мини

Description:

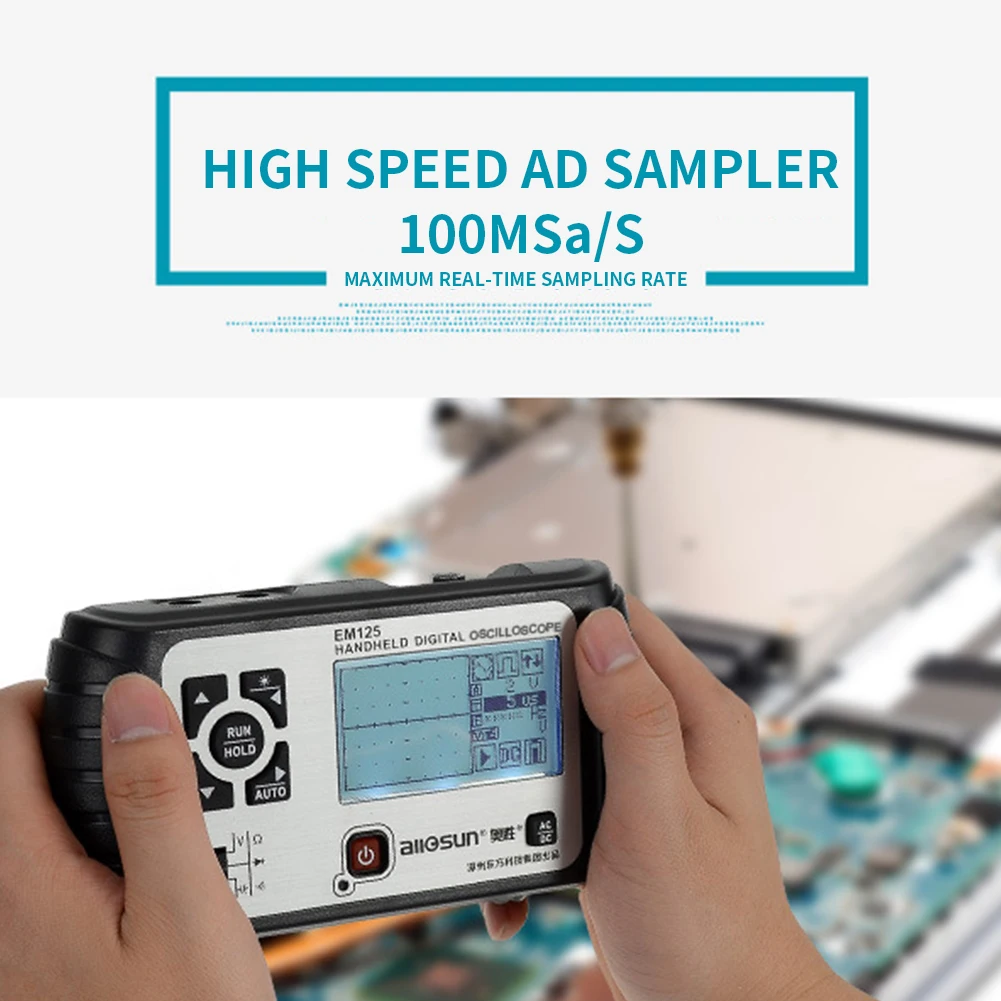

High speed AD sampler and CPU can convert the analog signal in to digital signal.
Show on the 128 x 64 LCD backlight display.
High speed comparator can get good edge trigger to present steadily.
It's multimeter part uses a dedicated chip (6000-count) , which can provide a higher accuracy.
Large capacity lithium battery can ensure about 10 hours working after fully charged.
Specifications:
Product name: Oscilloscope
Color: Black+White
Material: ABS+Electronic components
Battery: 1 x 1200mAH battery(Built-in)
Operating Mode: Manual
Operating Temperature: 0 - 40 Celsius
Display Type: Digital Display
DIY Supplies: Electrical
Bandwidth: 25MHz
Sample rate: Max. real time: 100 MSa/s
Measuring accuracy: 50 mV/div to 5 V/div: ±0.5%
DC vertical offset accuracy: +/-0.2 div, +/-2 mV +/-5%
Channel trigger sensitivity: DC to 25 MHz: 0.8 div
Vertical Sensitivity: 50mV / div-20 V / div
Horizontal sensitivity: 10nS / div-5S / div
Horizontal Resolution: 10nS / div-5nS / div
Diode check: 2V, 2mA
Continuity: Less than 25ohm
Buzzer function: Yes
Measuring Voltage Range: 6/60/600V
LCD screen size: About 128 x 64 mm
Size: About 174 x 93 x 43 mm
Package Included:
1 PC* Oscilloscope
1 PC * Carrying bag
1 PC * Test wire
1 PC *20 MH (10:1) probe
1 PC * Instruction manual
Note:
Transition: 1cm=10mm=0.39inch.
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 0.5-2 cm differences due to manual measurement.
