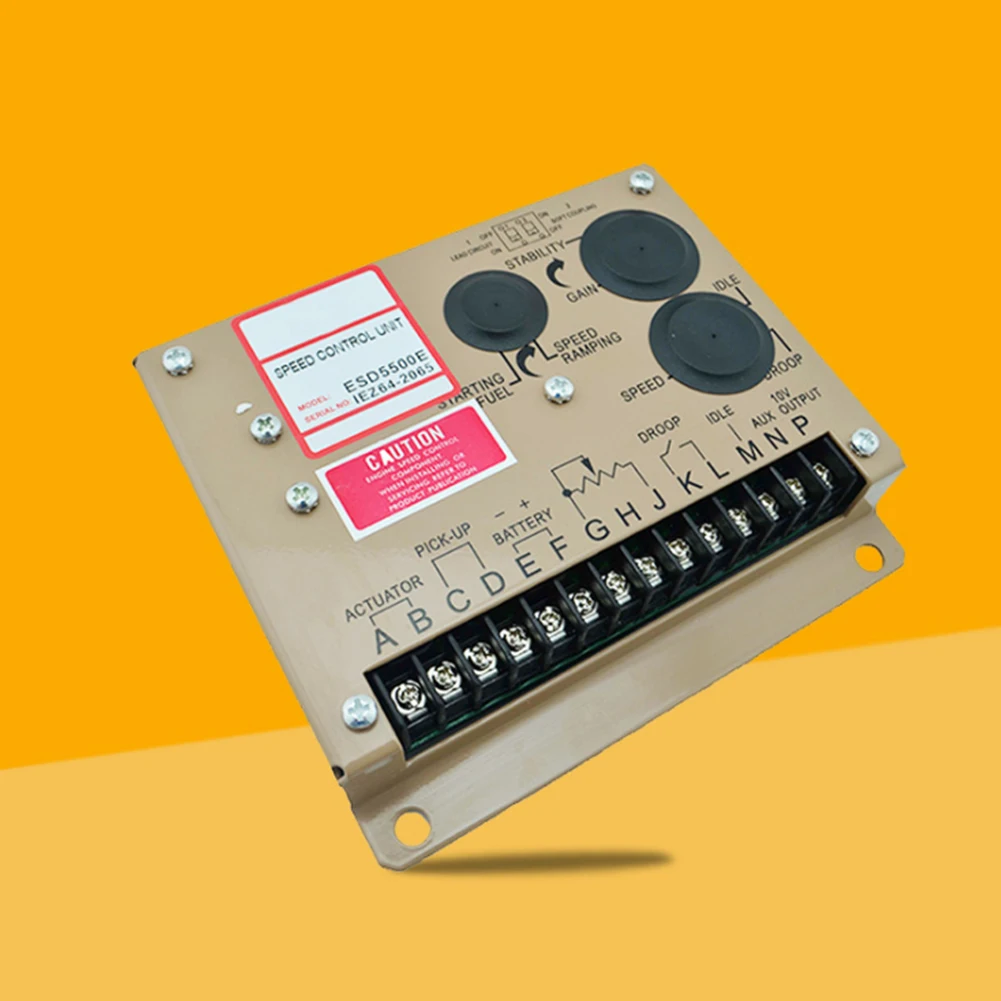

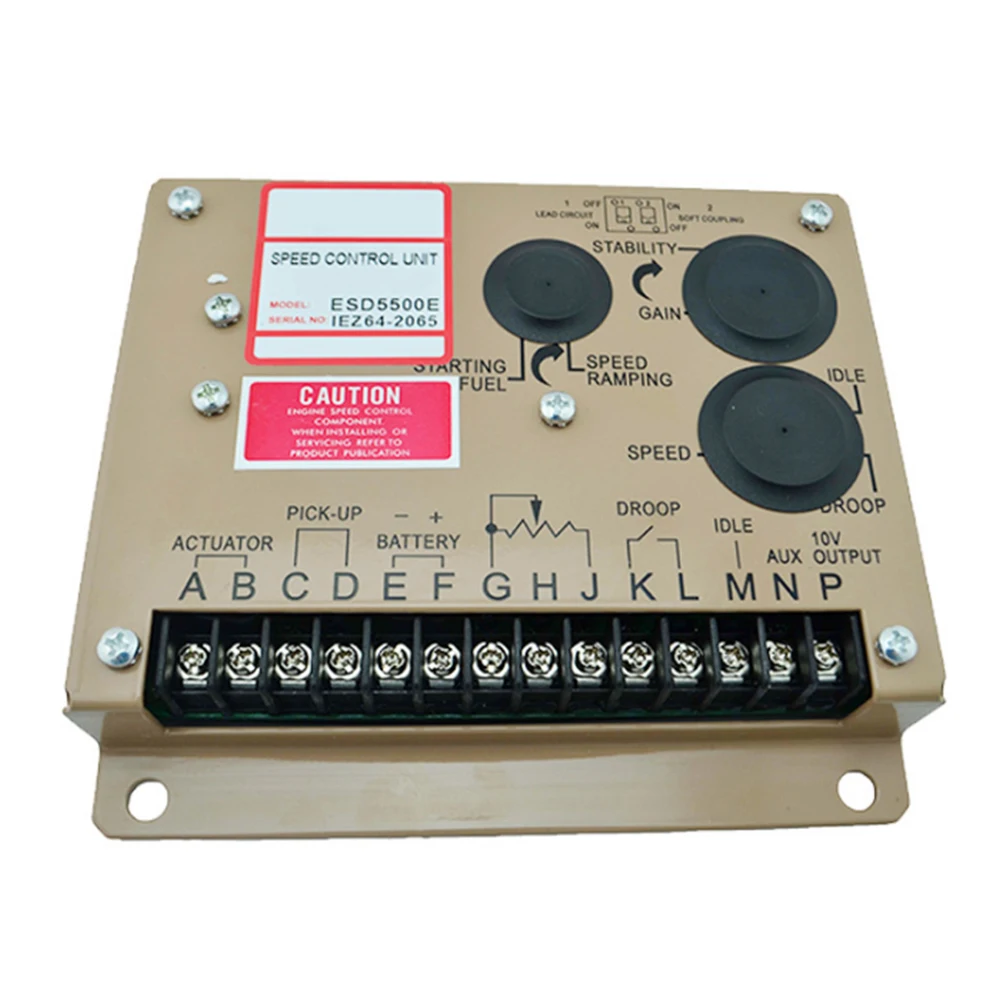

ESD5500E модуль надежный регулятор скорости двигателя генераторная установка Запчасти Ремонт Электронный Генератор Регулятор точный ответ Замена

Description:
This engine speed controller adopts full electronic closed loop design.
It can control a wide range of engines, fast and precise response to instantaneous changes.
It can prevent reverse battery voltage, instantaneous pulse voltage.
Easy to install, pre-adjustable, adjustable speed work idle.
High reliability, can withstand all kinds of electromagnetic interference around the engine.
Specification:
Steady state stability: ± 0.25% or better
Speed drift with temperature: ± 1% maximum
Governor: 1 - 7.5KHz
IDLE adjustment:160 ± 20Hz (95% of the rated rotation speed)
DROOP adjustment: 15 ± 6Hz per 1.0A change
Speed trim range: ± 200Hz
AUX input sensitivity: 148Hz/ 1V., ± 10Hz.
Impedance: 1MΩ
Start fuel regulation: 160±20Hz(60% of the rated rotation speed)
RAMP regulation: 1.5 - 20 sec.
Output current: 20mA (10V)
Working temperature: -40 ~ 85℃
Working humidity: up to 95%
Storage temperature: -55 ~ 90℃
Vibration: 20-100Hz 500mm/sec
Input power: DC12V/ DC24V
Polarity of ground: negative
Speed sensor signal: 0.5 - 120RMS
(Note: the above performance parameter are tested under the working frequency of 4000Hz)
Package included:
1pc x engine speed controller
1pc x English user manual
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow slight deviation for the measurement data and make sure you do not mind before ordering.
