Description:Digital LCD display for easy readings, can display measured data and graphics.
Rotary switch control, a key measurement for convenient use.
Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.
Use 9V battery(not included), can also use DC power(DC 6.8-12V).
Automatic shutdown, shutdown current is only about 20nA.
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.
Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.
Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.
Automatically test the pins of a component and show on the display.
Measure FET gate threshold voltage and gate capacitance.
For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.
Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.
Tips: Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Specification:

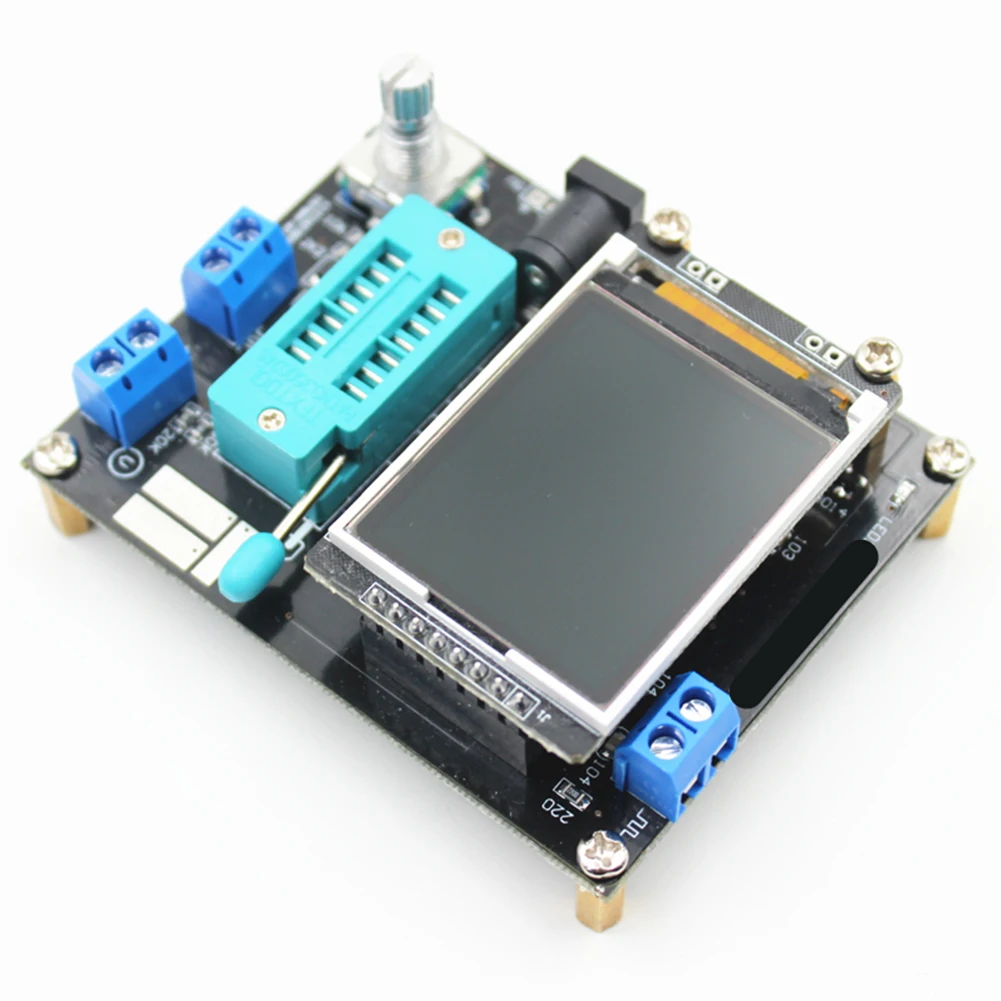

Product name: Transistor Tester
Color: As is shown
Display: 160*128 LCD
Power Supply: 1 * 9V Battery(not included); DC 6.8-12V
Current: Approx. 30mA
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.01Ω

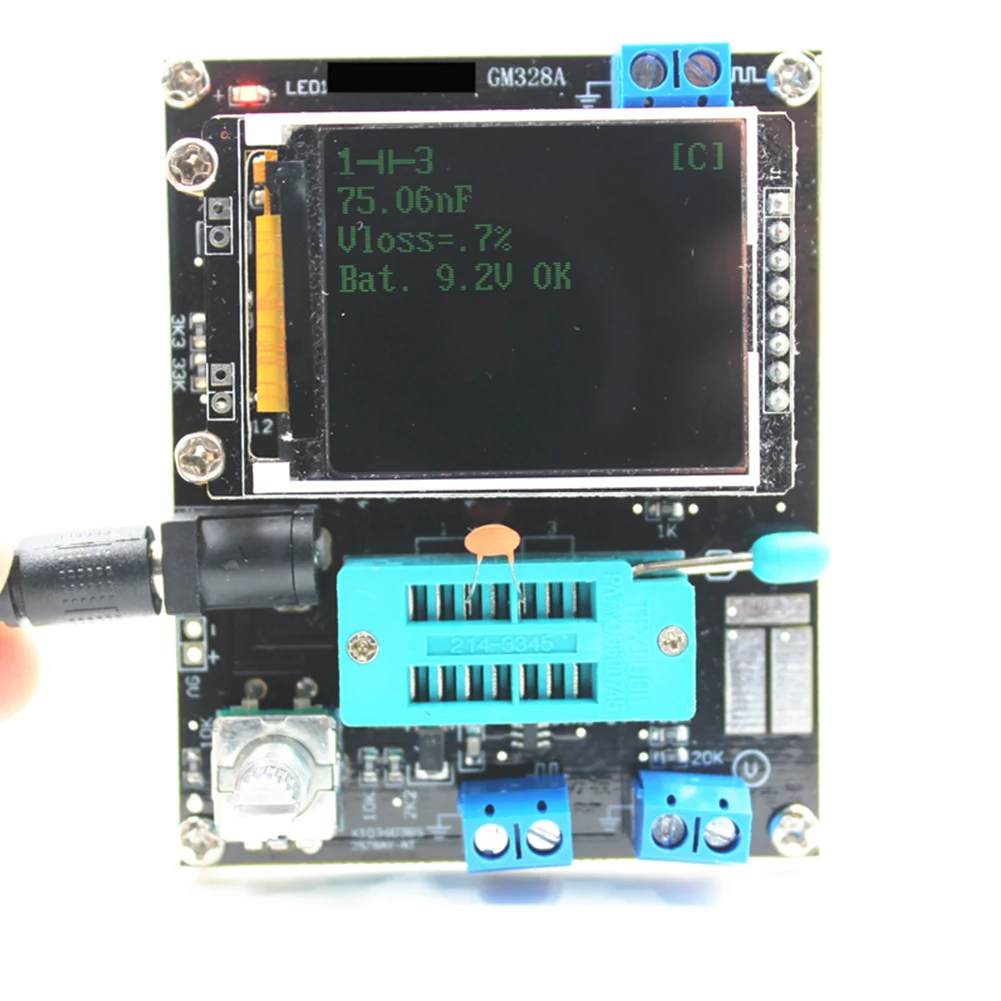

Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Screen Size: About 3.7 x 3cm / 1.45 x 1.18in
PCB Size: About 7.8 x 6.2cm / 3.1x 2.44in
Package Included:
1PC x Transistor Tester
Note:
Transition: 1cm=10mm=0.39inch
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
PaymentWe accept Escrow, Visa, MasterCard, Moneybookers, Western Union, ect. as payment method only. And prompt payment will be highly appreciated.
All payments must be confirmed. (Shipping and billing addresses must match).
Shipping
Usually, we will ship the item within 1-5 days after receiving the payment.
Delivery Time and Postage:
----We can offer express delivery like EMS/DHL. In normal condition, it will take about 3-7 working days via express delivery. If you want express delivery, please contact us, we will calculate the postage for you, or you can check Shipping&Packaging for reference.
We will choose a suitable delivery according to your country, as to strive for a fastest and reliable shipping for your order.
If you have not received your shipment after 60 days after we send out your order, please contact us. We will help to check the delivery information and solve the problem for you.
Please kindly notice that the buyer need to be responsible for (in case) all or VAT under any circumstances.
Feedback
We will double check all the item before and make sure they are in good condition before dispatch.
if there is any unsatisfied with our product and service, please contact us first before leaving us 1, 2, 3 rating or Neutral/Negative feedback or dispute. As you know, your feedback is very important to us and be encouraged to us, we will try to our best to fix any problems you might be having and offer you the best service.
Customer service
We strive for 100% customer satisfaction on our business, we will do our best to service every of our customer.
If any questions, please contact us first, we will do our best to response in 12 business hours.
Характеристики
- Бренд
- Woopower
- Материалы для самостоятельного изготовления
- Электрический
- Номер модели
- GM328A transistor tester
- Тип дисплея
- Цифровой дисплей
