Инструмент 1 HZ-65534 HZ генератор сигналов легко Управление Треугольники счетчик частоты сигналов DDS Функция аудиотехника модуль квадратный

Features:
Small size, powered by DC 9V, easy and portable for use.
DDS frequency range: 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz.
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
LCD display for clear reading, intuitive touch buttons.
The power automatically restore the last used configuration.
Specifications:
Color: as shown
Size:about 135x80x32mm
Power cable length:about 70cm
Display: 1602 LCD
Operating voltage: DC 9V
DDS frequency range: 1Hz-65534Hz
Frequency(HS) output: up to 8MHz
Offset: 0.5pp-5Vpp
Amplitude amount: 0.5Vpp-14Vpp
Package included:

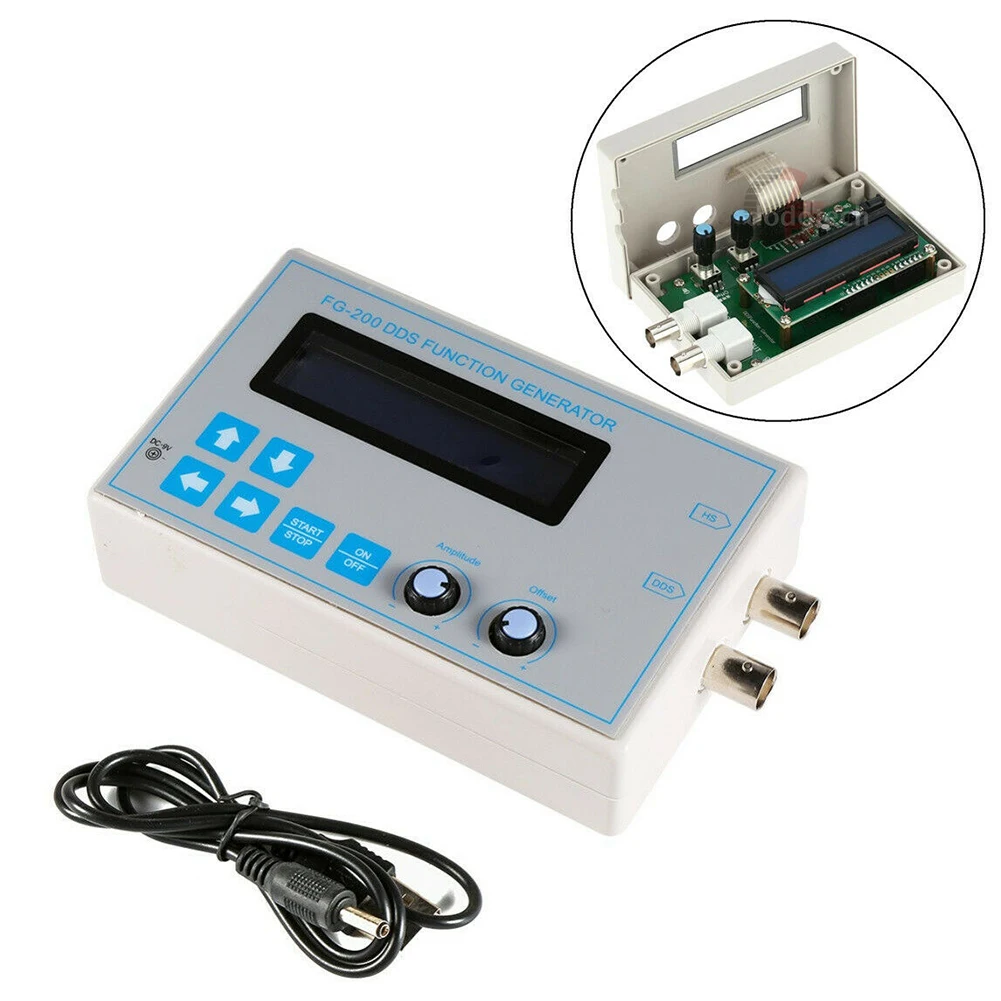

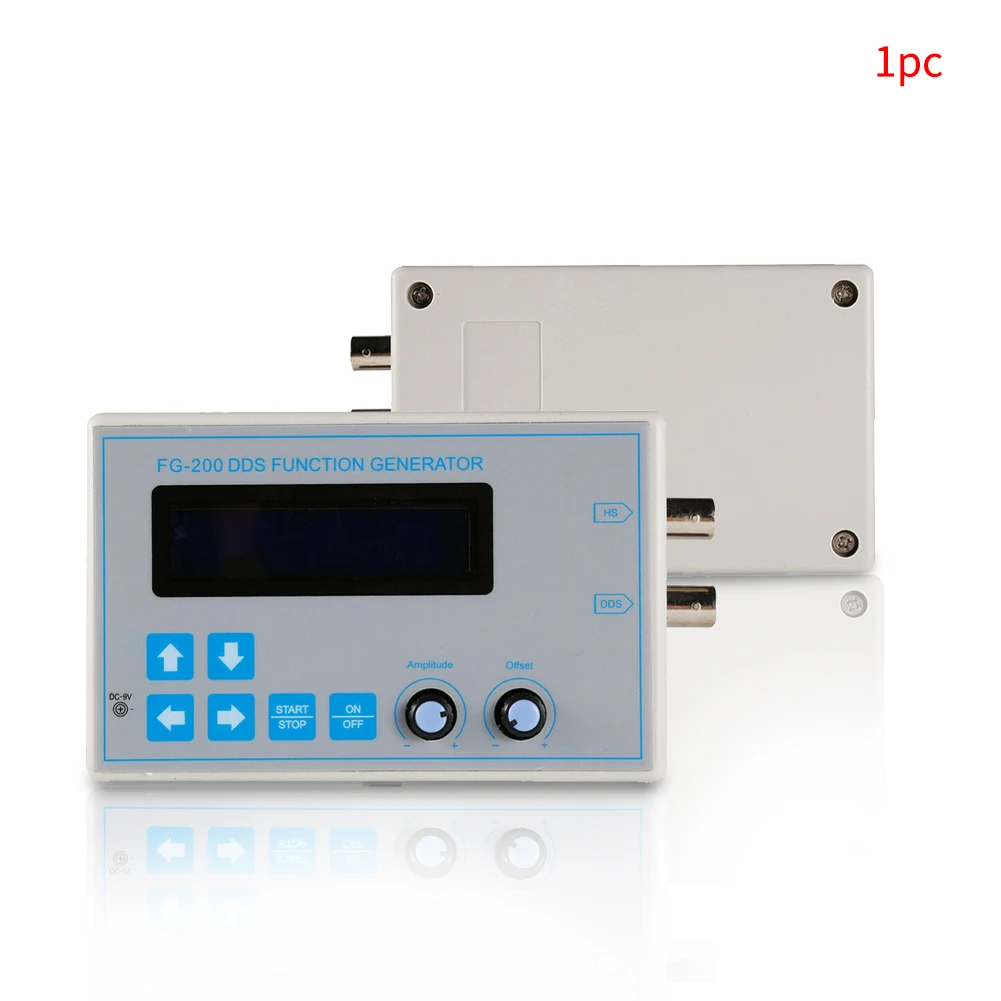

1pc x DDS signal generator
1pc x power cable
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
