ISDS205A 3 в 1 техническое обслуживание хранения Виртуальная цифровая 20 МГц Портативный регистратор данных AD DC PC анализатор инструменты осциллограф (от 3408 руб.)

Описание

Description:
3 in 1 Multifunction, with the functions of Digital Oscilloscope, Analyzers, and Data Recorder.
High performance oscilloscope, 20MHz bandwidth, 48M sampling rate.
2 annels, alternate support for X, Y, XY dual annel virtual oscilloscope, analyzer, data recorder alternating mode.
The device communicates with PC via high-speed USB.
Super small size, easy to carry, can be put directly into the computer bag, easy to travel and teaing.
Suits for Vehicle maintenance, ignition device waveform detection. Electrical maintenance, electrical signal measurement, signal comparison.
Mobile phone maintenance, electronic component signal detection. Resear and teaing, debugging of embedded system.
Specification:
Material: Plastic
Color: As shown
Size: About 18x14x3cm
Model: ISDS205A
Digital Oscilloscope:
annels: 2
Impedance: 1MΩ 25pF
Coupling: /DC
Vertical resolution: 8Bit
Voltage range: -6V ~ 6V(probe X1), -60V ~ 60V(probe X10)
Vertical cury: ±3%
Timebase range: 1ns-20s
Input Protection: Diode,50Vpk
Autoset: Yes(10Hz to 20MHz)
Trigger Mode: Auto,Normal and Signal
Trigger Type: Simulation
Trigger level: Yes
Trigger Source: 1, 2
Storage depth: 1MB/
Bandwidth: 20MHz
Max sample: 48MS/s
Vertical mode: 1, 2, ADD, SUB, MUL
Display Mode: X,Y-T and X-Y
Cursor Measurements: Yes
Cursor Display: Frequency, voltage
Wave save: Osc(Private), Excel and Bmp
Analyzers:
annels: 2
Bandwidth: 20MHz
Algorithm: FFT(18 windows),Correlation
FFT points: 8-1048576/N
Filter processing: FIR filter supports arbitrary range of frequency sampling method, and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blkman, blkman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, gauss window method design.
IIR filter support Butterworth, ebyshev I, ebyshev II, Elliptic type of filter design.
Data Recorder:
annel: 2
Impedance: 1MΩ 25pF
Coupling: /DC
Vertical resolution: 8Bit
Voltage range: -6V ~ 6V(probe X1), -60V ~ 60V(probe X10)
Sample:1 annel: 1K~24M Hz, 2 annel: 1K~16M Hz
Save File: The maximum 4G, recording time associated with the sampling rate

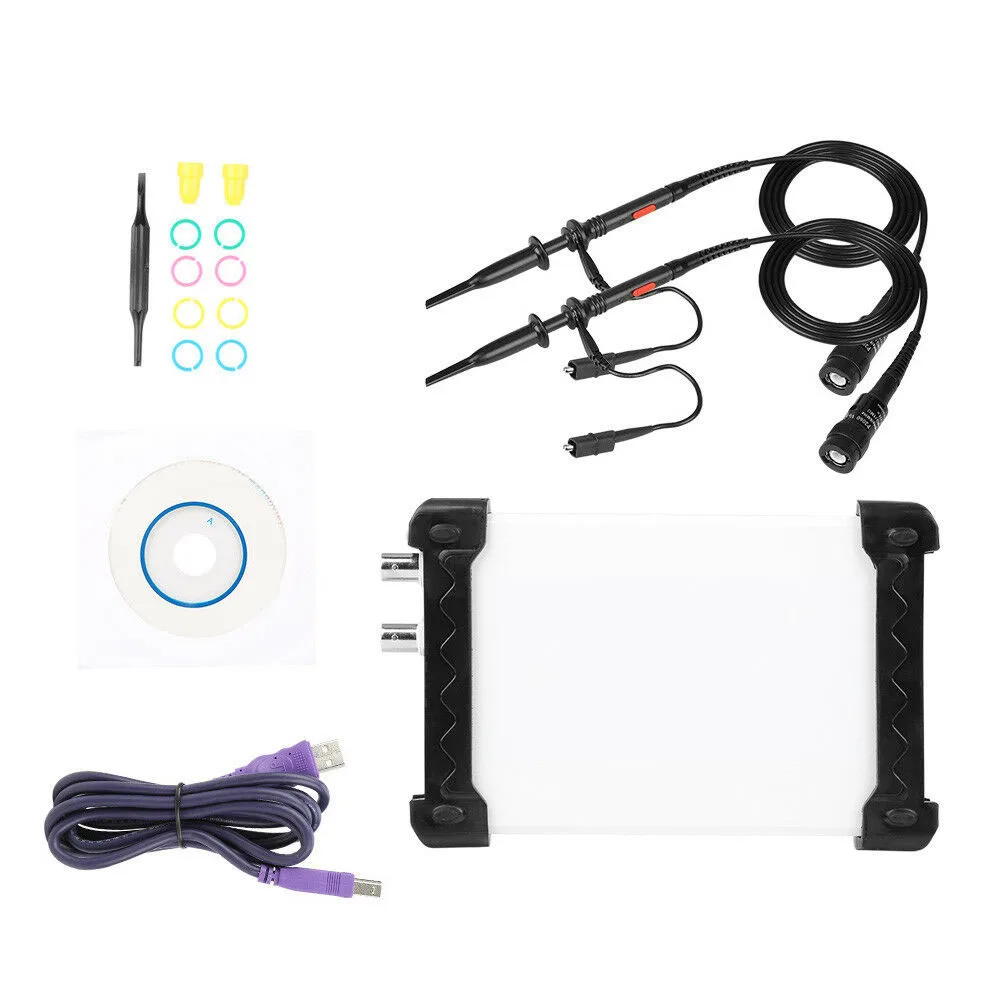

Pkage includes:
1pc x Virtual Oscilloscope
1pc x USB cable

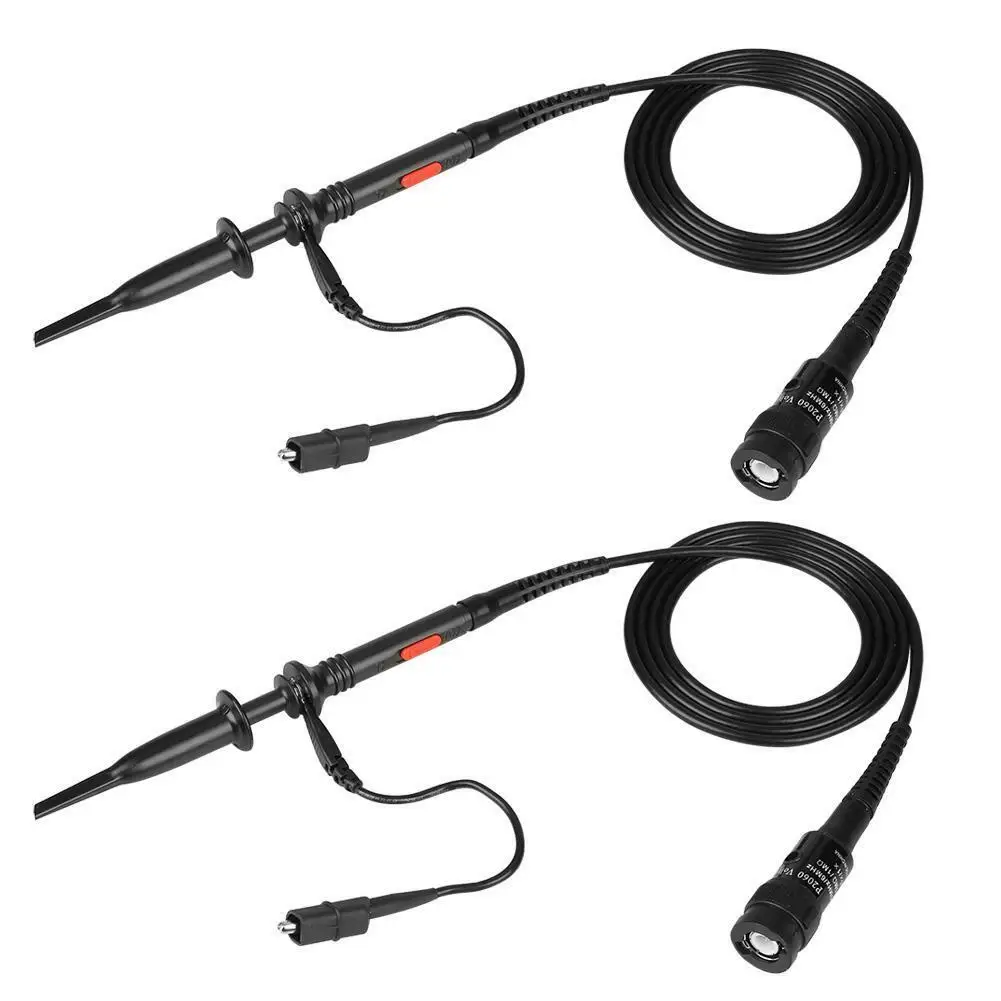

2pcs x high voltage probe
1pc x adjust tool
8pcs x protection sleeve
1pc x id ring
1pc x CD
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
