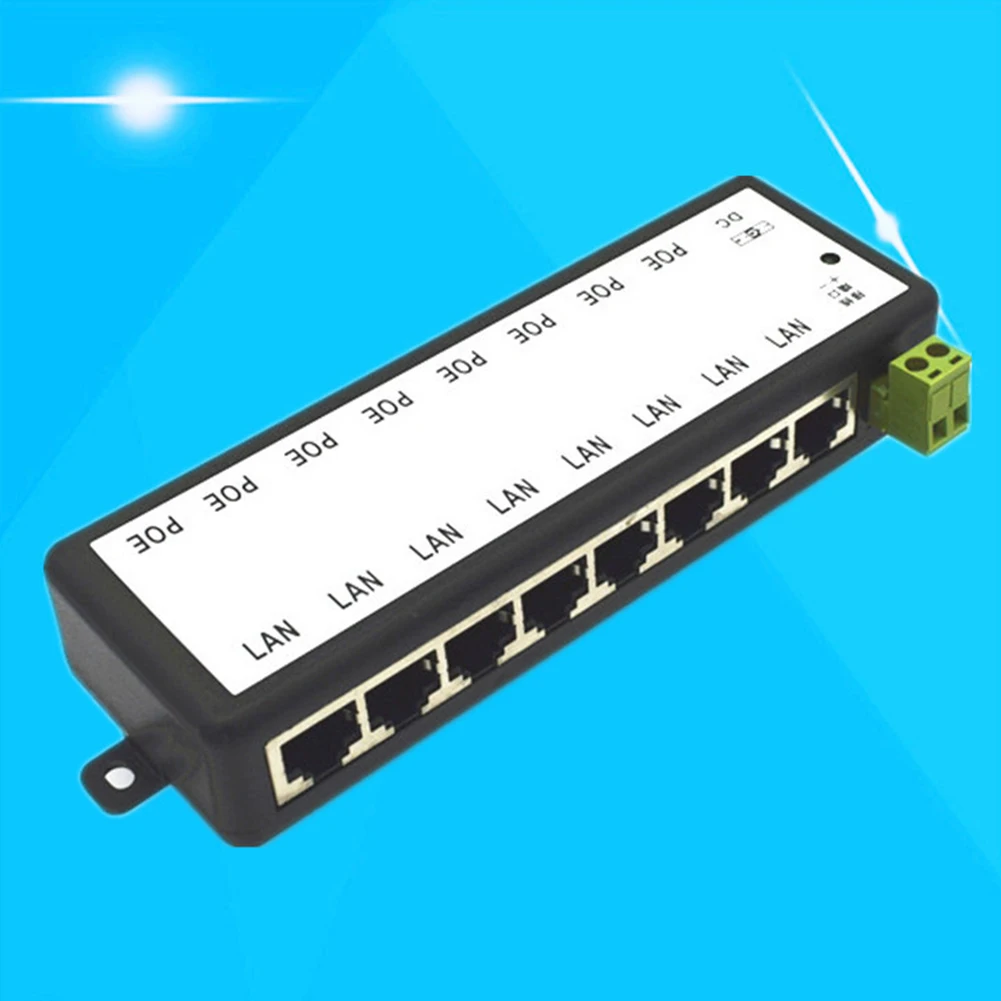

Камера CCTV модуль 12-48 в 8 портов мониторинг Ethernet POE центральный сплиттер сетевой цепи мост блок питания

Features:
POE port: connection bridge AP CPE device WAN interface (used with POE separation line).
LAN port: Connect to the router Switch or directly connect to the host computer network interface.
DC socket: outside -5.5mm x +2.1mm.
LAN port = 1 2 3 6 pin data.
POE port = 4 5 pin positive 7 8 pin negative; 1 2 3 6 pin data.
Specifications:
Material:Plastic
Color:Black
Size:Approx.163x53x29mm
Rated voltage: 12-48V DC
Input current: 0-10A
Input data transfer: 1 /2/3/6 feet
Transmission rate: 10/100Mbps
Input Voltage: 12-48V DC
Output data transmission: 1 /2/3/6 feet
Output transmission rate: 10/100Mbps
Output transmission power: 4/5 positive 7/8 negative
Note: The green terminal is connected to the DC jack supply voltage.
Network cable equipment to line standard: straight through 568B; (positive line, that is straight through line, standard 568B: the same end line order, from left to right line order: White Orange. Orange. White Green. Blue. White Blue. Green. White Brown. Brown)
Package included:1pc x Power Supply Box
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
