NKTECH NK-L2 LCD Digital Manometer Differential Air Pressure Meter Gauge kPa ±2Psi
DESCRIPTION
Features:
Designed for perfect fit.
High quality 100% brand new.
The device measures Gauge/Differential Pressure from -55H2O to +55H2O (+2 psi). It features 11 selectable units of measure:
inH2O, psi, bar, mbar, Kpa, InHg, mmHg, ozin2, FtH2O, cmH2O, kgcm. Additional features include Data Hold and Auto Power off disabled.
Careful use of this meter will provide years of reliable service.
Large dual LCD with back light.
Data hold.
Max/Min/Avg value with relative time stamp.
Zero adjust, offset and DIF function.
Low battery indication.
| Functions |
| 1.11 selectable units of Measure |
| 2.Max/min/average, and with a relative time |
| 3.large LCD Back light dual display |
| 4. Zeroing,offset,and data compensation |
| 5.Low battery display and automatic shutdown |
| 6.Data Hold and Error code |
| Specifications | |||||
| Function | Range | Resolution | Function | Range | Resolution |
| InH2O | ±55.40 | 0.01 | Ozin⊃2; | ± 32.00 | 0.01 |
| Psi | ± 2.000 | 0.001 | ftH2O | ± 4.612 | 0.001 |
| Mbar | ± 137.8 | 0.1 | cmH2O | ± 140.6 | 0.1 |
| Kpa | ± 13.79 | 0.01 | kgcm | ± 0.140 | 0.001 |
| inHg | ± 0.407 | 0.001 | Bar | ± 0.137 | 0.001 |
| mmHg | ± 103.4 | 0.1 | |||
| Display | Dual LCD |
| Accuracy | 0.3% FSO (25C) |
| Repeatability | 0.2% (Max 0.5% FSO) |
| Linearity/Hysteresis | 0.29%FSO |
| Pressure Range | ±2Psi |
| Response Time | 0.5s Typical |
| Low Range Indicator | Err.1 |
| Under Range Indicator | Err.2 |
| Operating Conditions | 32°F to 122 °CF (0 to 50°c ) |
Color: Red.
# Battery won't be included in shipping becased of new air post regulation.
Package includes as below

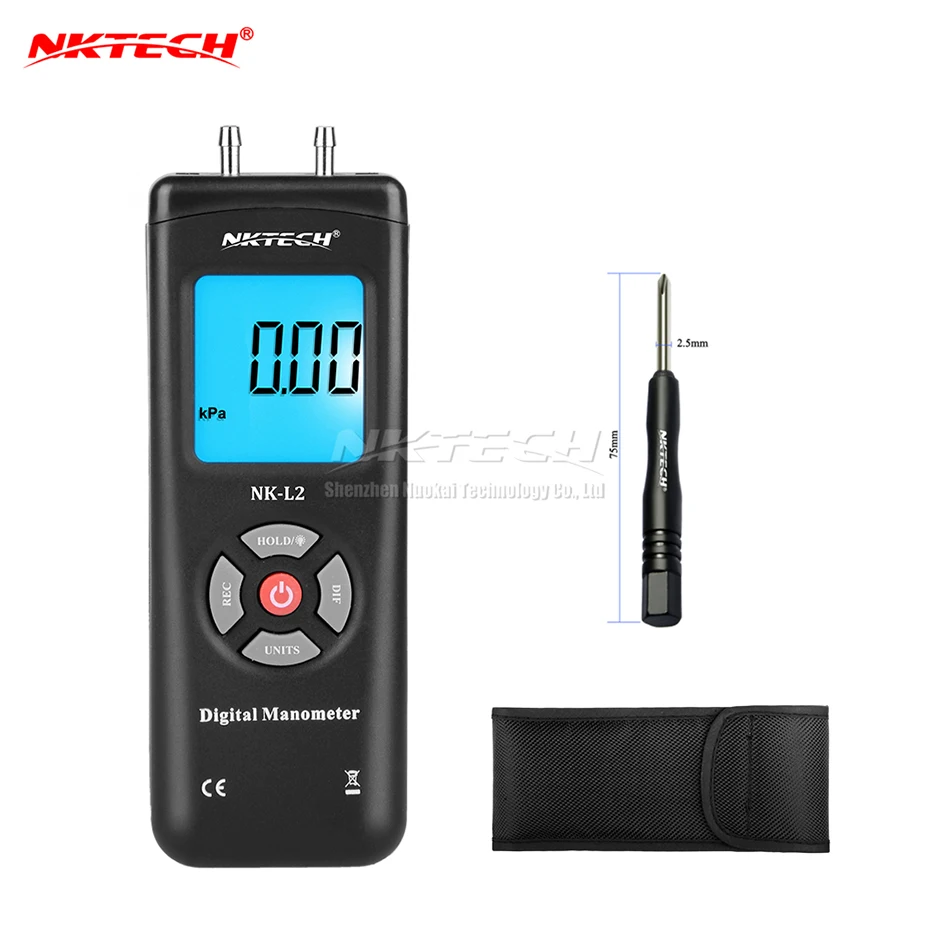

1 x NKTECH NK-L2 Digital Manometer Red.
1 x English user manaul.
1 x Metal accessory.
1 x Leather Case.
2 x Tube.
Характеристики
- Бренд
- NKTECH
- Материалы для самостоятельного изготовления
- Электрический
- Номер модели
- NK-L2
- AC Напряжение
- None
- Диапазон измерения ёмкости
- None
- Размеры
- N
- Диапазон измерения сопротивления
- None
- Тип дисплея
- Цифровой дисплей
- Постоянного тока
- None
- Переменного тока
- None
- DC Напряжение
- None
- Режим работы
- None
- Рабочая температура
- 0-50 ℃
- Диапазон измерения индуктивности
- None
- 11 selectable units of Measure
- Yes
- Max/min/average
- Yes
- Large LCD Back light dual display
- Yes
- Zeroing, offset
- Yes
- Data compensation
- Yes
- Low battery display
- Yes
- Automatic shutdown
- Yes
- Data Hold and Error code
- Yes
- Response Time
- 0.5s Typical
- Pressure Range
- +-2 PSI
