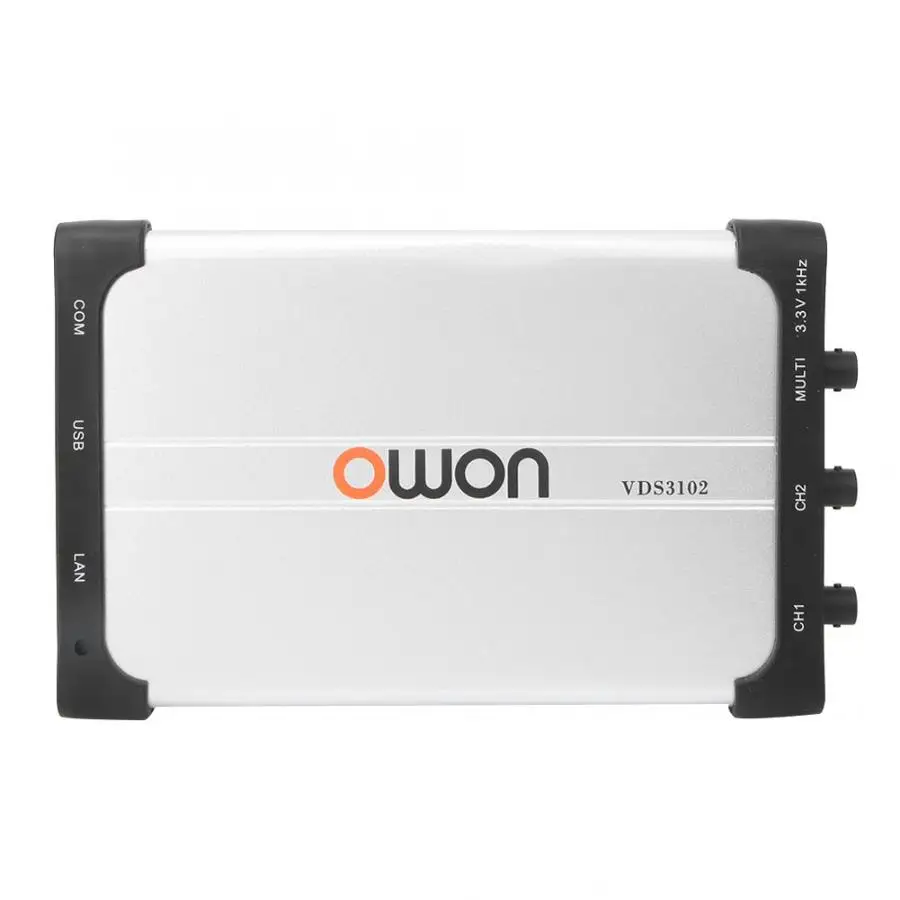

Owon VDS3102 100MHz 2+1 Multi Channel 1 GS/s Virtual USB Oscilloscope

Features:
1. Multiple functions: Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record, FFT spectrum analyzer and other function.
2. The Owon VDS3102 2+1 channel virtual oscilloscope is an oscilloscope that can connect directly with PCs through a USB connection.
3. Good mechanical design with small size which is easy for carrying.
4. Accommodates users with 100 MHz of bandwidth, 1 GSa/s real-time sample rate, and multiple trigger modes - edge, video, slope, pulse, and alternate. Its USB powering facilitates mobile tests under powerless conditions.
5. Fit for the portable computers, table PC, and repairing/fixing of production line.

Specification:
Item Type: Oscilloscope
Material: Metal + Plastic

Model	VDS3102
Bandwidth	100MHZ
Channel	2+1 (multi)
Sample Rate	1GSa/s
Horizontal Scale(s/div)	2ns/div-100s/div, step by 1-2-5
Rise Time	≤3.5 ns
Record Length	10M
Input Coupling	DC, AC, GND
Input Impedance	1MΩ±2%, in parallel with10pF±5pF
Channels Isolation	50Hz:100 : 1, 10MHz:40 : 1
Max Input Voltage	40V (PK-PK) (DC+AC, PK-PK)
DC Gain Accuracy	±3%
DC Accuracy	Average≥16: ±(3% reading + 0.05div) for T
Probe Attenuation Factor	1X, 10X, 100X, 1000X
LF Respond(AC, -3dB)	≥10Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay TimeAccuracy	150ps
Interpolation	sin(x) /x
Interval(T) Accuracy (full bandwidth)	Single: ± (1 interval time+ 100ppmxreading + 0.6ns), Average >16: ±(1 interval time + 100ppm x reading + 0.4ns)
Vertical Resolution(A/D)	8 bits (2 channels simultaneously)
Vertical Sensitivity	2mV/div-5V/div
Trigger Type	Edge, Pulse, Video, Slope, Alternate
Trigger Mode	Auto, Normal, Single
Trigger Level	±5 divisions from screen center
Acquisition Mode	Sample, Detect, and Average
Line/ Field Frequency(video)	NTSC, PAL, and SECAM standard
Cursor Measurement	V, and T between cursors
Automatic Measurement	Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A-B, Delay A-B, +Width,-Width, +Duty, -Duty
Waveform Math	invert, FFT
Lissajous Figure	Bandwidth
Communication Interface	USB2.0, LAN (optional)
Multi-functionInterface	Signal Type
Level Standard	TTL
Power Supply	5.0V/1.5A
Power Consumption	≤6.5W
Dimensions(WxHxD)	190x120x18 (mm)
Weight (without package)	About 741g / 26.1oz

Package List:
1 x Oscilloscope
1 x Instruction
1 x CD
1 x USB Cable
2 x Probe
1 Set x Probe Adjustment
