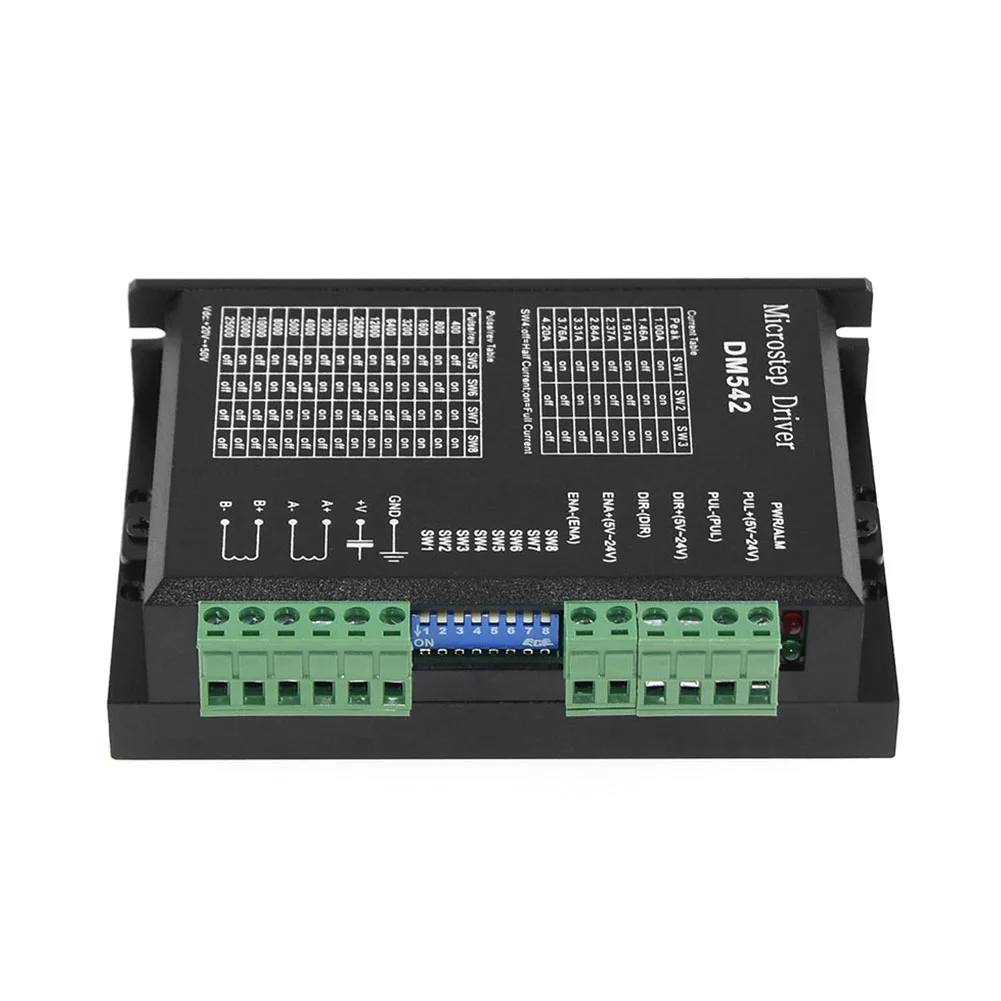

Разрешение шагового двигателя драйвер Защита от перенапряжения мини микро шаг автоматический цифровой дисплей полный закрытый для Nema 17 23 24 (от 920 руб.)

Описание

Разрешение шагового двигателя драйвер Защита от перенапряжения мини микро шаг автоматический цифровой дисплей полный закрытый для Nema 17 23 24

Description:
1. Auto-identification and parameter auto-configuration when power on.
2. Anti-resonance provides optimal torque and nulls mid-range instability.
3. Automatic idle-current reduction, suitable for 2-phase and 4-phase motors.
4. Multi-stepping allows a low resolution step input to produce a higher microstep output.
5. Over-voltage and current protection. Soft-start with no “jump” when powered on.
Specifications:
Feature: digital
Color: as shown
Highest output current: 1.0 ~ 4.2A
Input voltage: +20 ~ 50VDC
Logic signal current: 7 ~ 16mA
Pulse input frequency: 0 ~ 200kHz
Pulse width: 2.5μS
Isolation resistance: 500MΩ
Cooling: natural cooling or forced cooling
Environment: avoid dust, oil fog and corrosive gases
Ambient temperature: 0℃ ~ 65℃
Humidity: 40%RH ~ 90%RH
Operating temperature: -10℃ ~ 45℃
Vibration: 10-55Hz / 0.15mm
Package Included:
1PC * Stepper Motor Driver
