Стабилизированный адаптер CNC драйвер шагового двигателя коммутационная плата замена контроллер защита от обратного модуль 5 оси аксессуары для Mach3

Description:
Fully suitable for MACH3 and other computer software support for parallel port control.
USB power supply and peripherals powered phase separation to protect computer security.
Peripheral wide voltage input,12-24V, and anti-reverse function.
All the way to the relay output port, control spindle switch. Output port P17 mouth.
Can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
P1 as PWM outputs can be controlled with optocoupler input spindle governor.
Can be accessed by a common cathode or common anode input level to 5V drive.
Specifications:

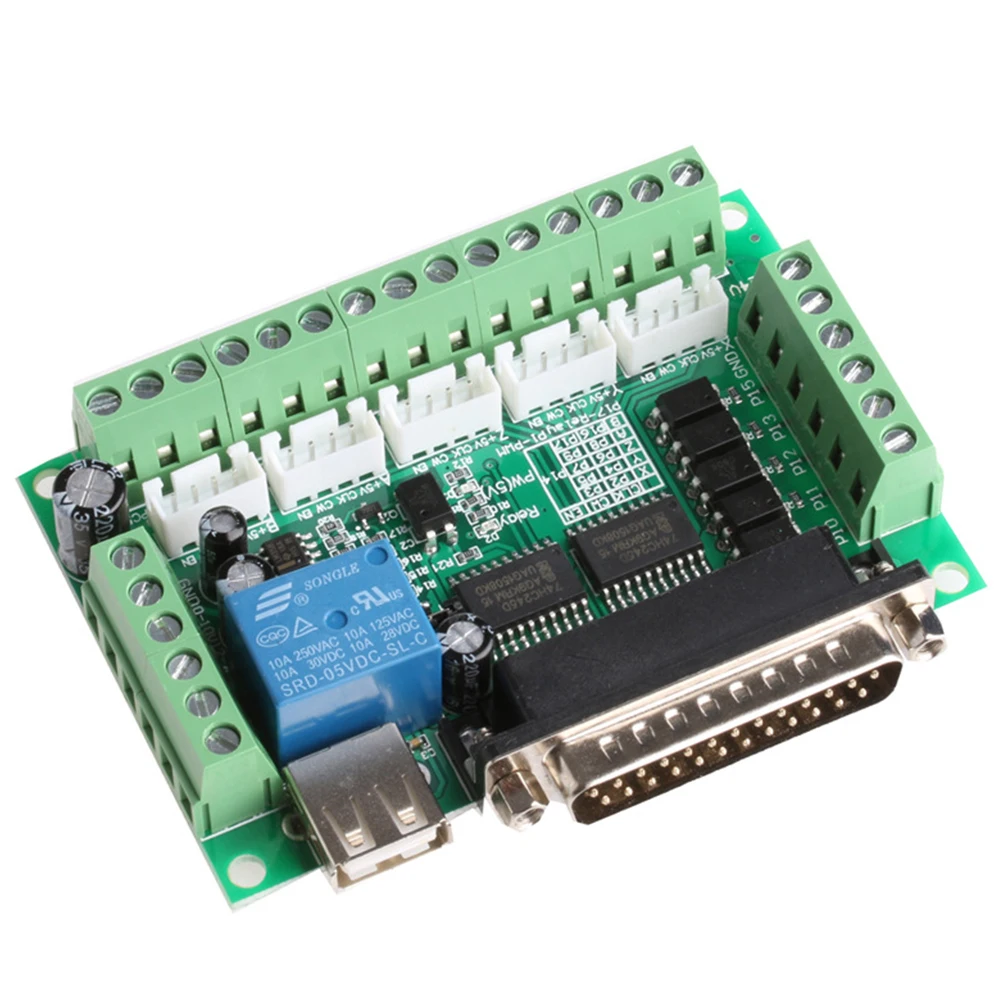

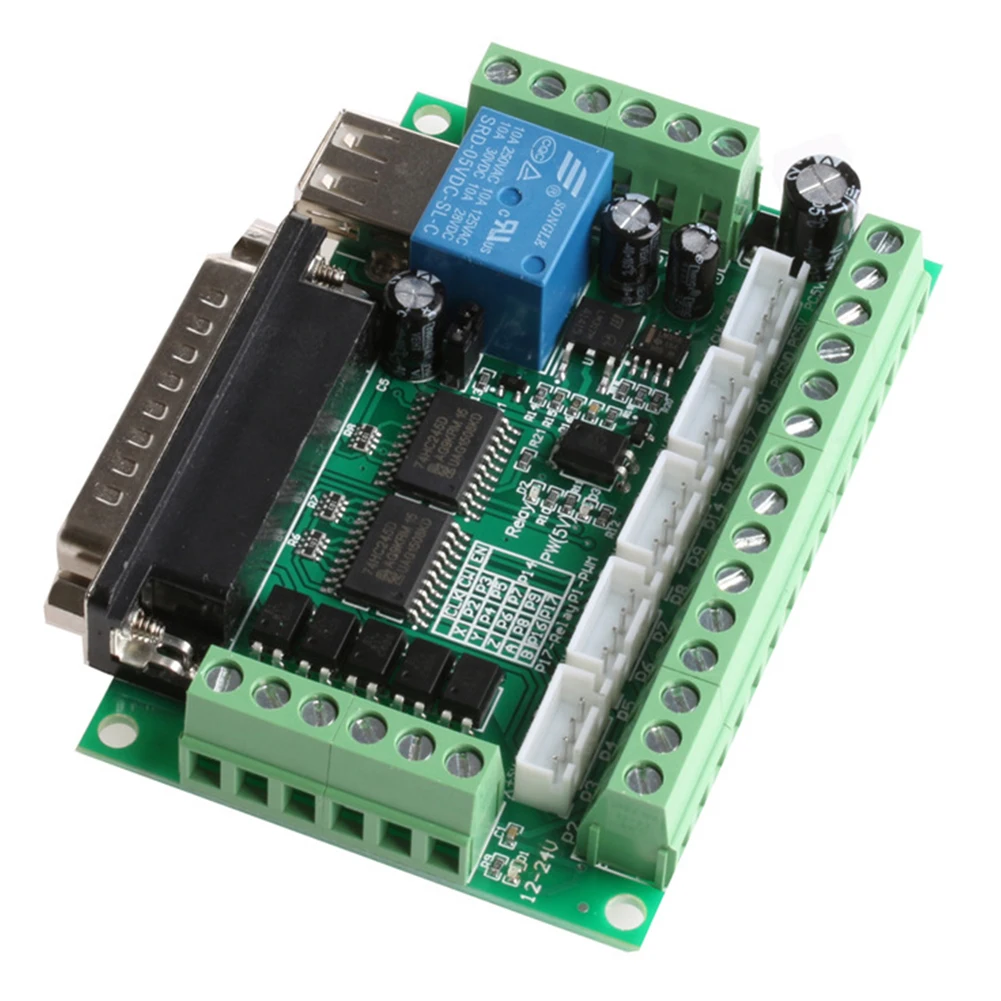

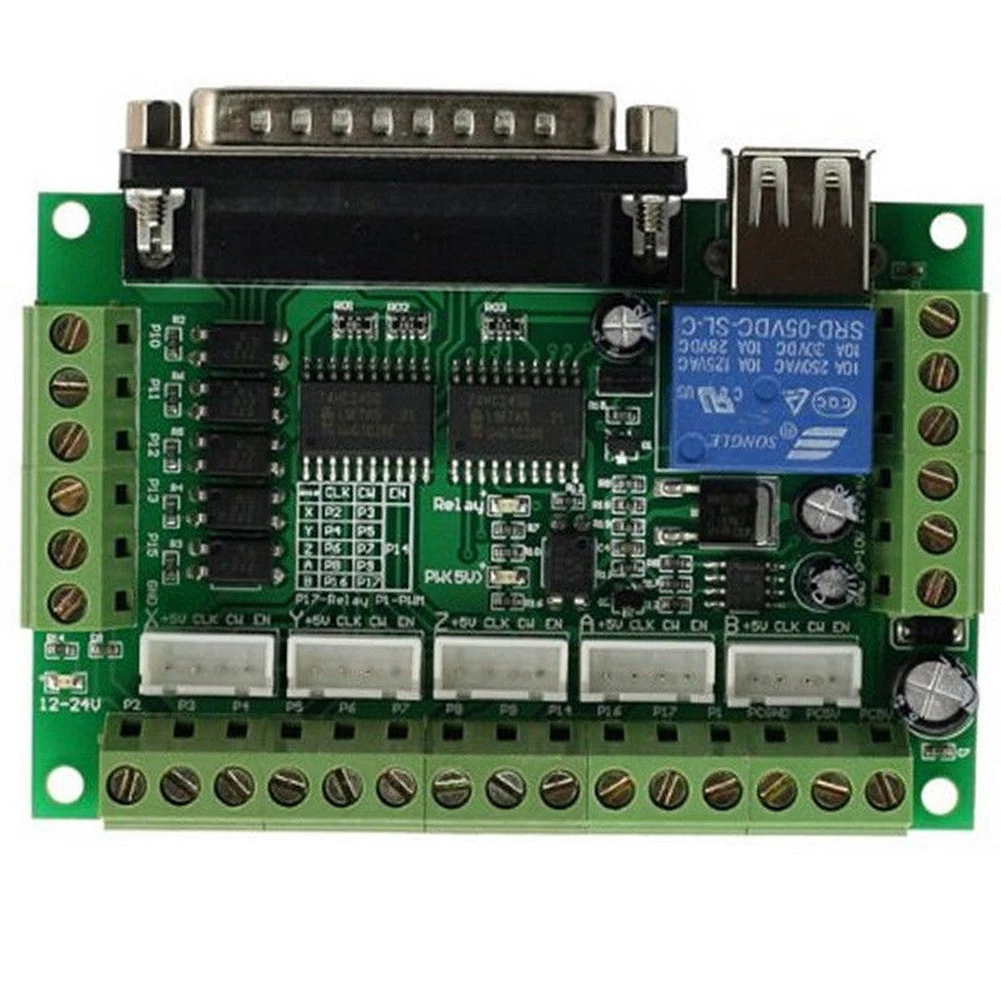

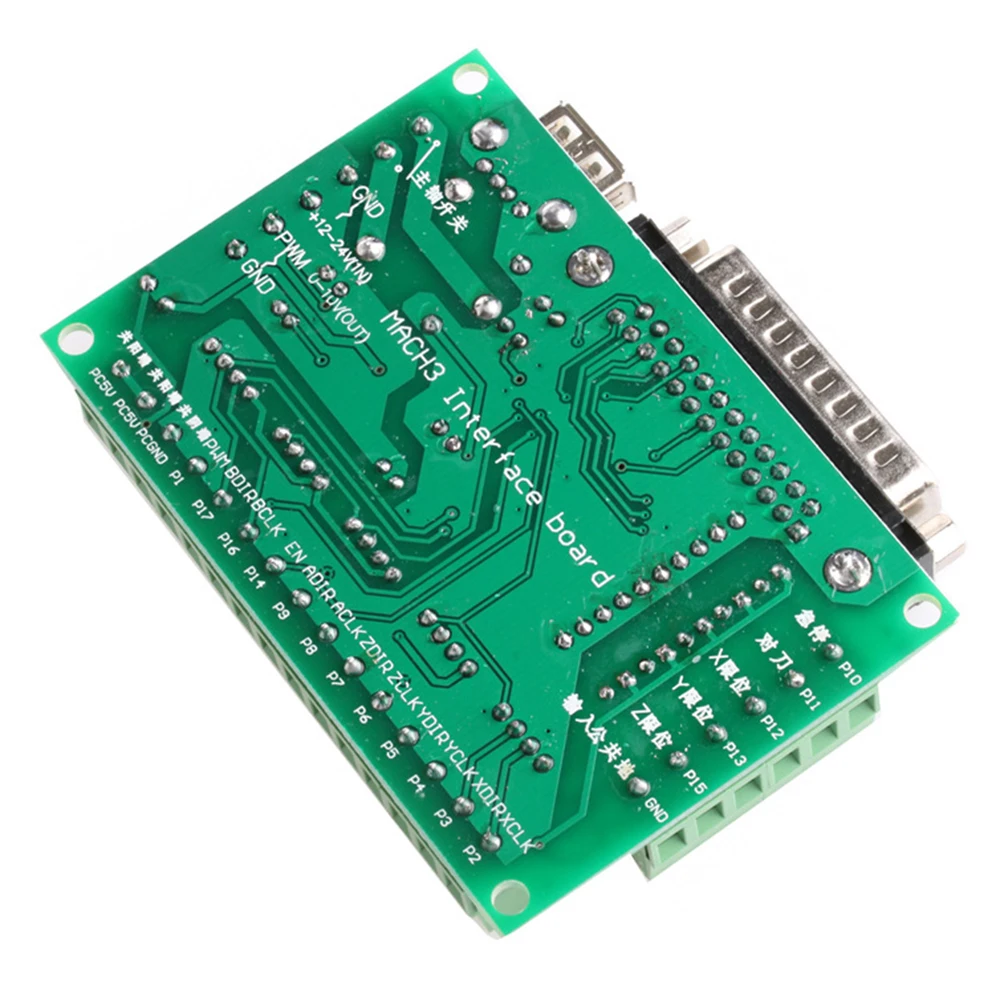

Product name: Breakout board
Color: Green
Suitable for: For mach3
Package Included:
1 PC* Breakout board
Note:
Transition: 1cm=10mm=0.39inch.
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 0.5-2 cm differences due to manual measurement.
