Светодиодный модуль управления индикатором USB подключение 6V~ 24V зарядка батареи панели солнечных батарей Замена адаптера питания плата MPPT

Features:
For 6V~24V solar panel, DC-002 jack input or screw terminal input.
Several LED indicators: for monitoring the status of solar panel and battery.

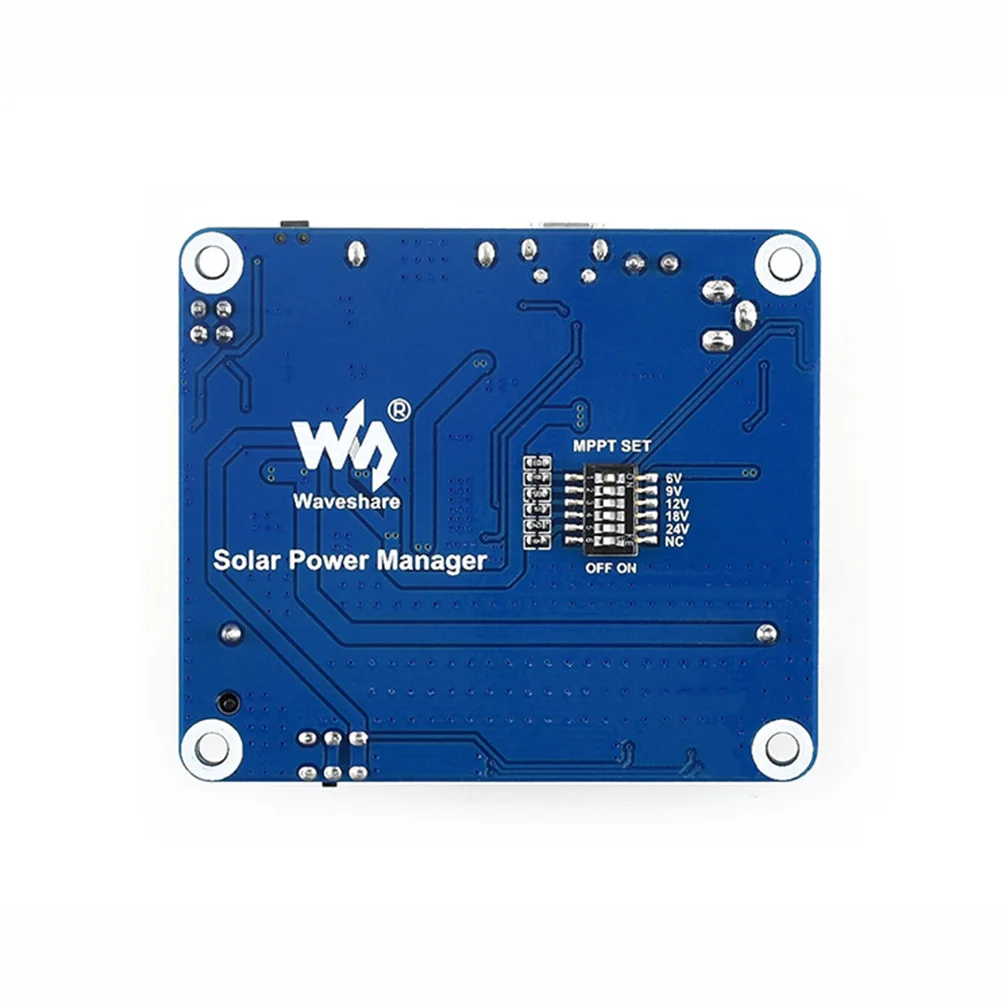

Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency.
Supports MPPT (Maximum Power Point Tracking) function: maximizing the efficiency of the solar panel.
Two 5V output interfaces: pinheaders and USB port. Supports solar panel / USB connection battery charging.
Stable performance: Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple.
Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use.
Specifications:
Color: As Picture
Product Size(about): 65.2mm × 56.2mm × 22.9mm
Solar Panel Input Voltage (Solar In): 6v~24v
Micro USB Input Voltage (USB In): 5v
Pinheader / USB Output (USB Out): 5v 1a
Charging Cutoff Voltage: 4.2v±1％
Over Discharging Protection Voltage: 2.9v±1％
Solar Panel Charge Efficiency:: ~78%
USB Charge Efficiency:: ~82%
3.7v Battery Boost Output Efficiency: ~86%
Max Quiescent Current: <2ma
Operating Temperature: -40℃~85℃
Package Included:
1 x Solar Power Manager
1 x Battery
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
