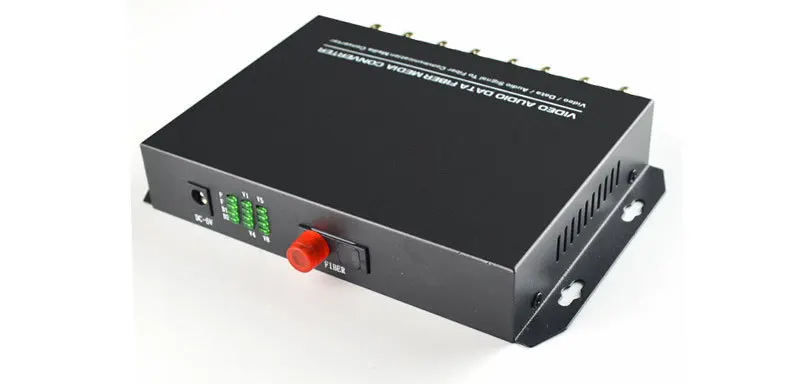

Описание
| |||||||||
| |||||||||
| |||||||||
Features:
8-bit or digitally encoded and non-compression video transmission
Directly compatible with NTSC, PAL, and SECAM CCTV camera systems
Power supply and other parameter state indication, which can monitor the operation condition of system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
Industry-grade of operating temperature from -10 degree C to 75 degree C, which is applied to the different working environment
Hot-swap function
Stand-alone type or card-type installed in 19 inch 2U or 4U rack-mount chassis.
Optical interface: FC
Abundant signal interface, such as video
Max range 25km
Application:
City traffic monitoring system
Police and safe city monitoring system
High way security protection and toll station system
Building and campus monitoring system
Industrial monitoring(airport, chemical plant, steel, oil, railway, irrigation works, mine and so on)
Military monitoring(storage, frontier defense, guard, national defense and so on)
Electronic power oil field, TV station program broadcasting system
Gymnasium(live video transmission)
Specification:
Optical:
Wavelength: 1310nm
Output Power: -3 to 2 dBm
Optic fiber: 9/125u single mode
Rx sensitivity: -25 dBm
Optical connector: FC
Distance: 25KM
Video:
Number of Channels: 8
Input/output impedance: BNC 75 ohm (unbalance)
Video bandwidth: 5HZ to 8MHZ
Standard video input/output voltage: 1.0Vp-p
Video voltage range: 0.6 to 2.0Vp-p
Differential Gain: < +/- 1.5%
Differential Phase: < +/- 1%
SNR: >60dB (8 bit)
Connector: BNC
Operating Voltage: DC 12V
Weight:1.2kg
Package size:29*18*9cm
Характеристики
- Габаритные размеры
- 8V
- Номер модели
- 8V
- Тип штекера
- EU
- Тип товара
- Оптический передатчик и ресивер
- Бренд
- DVNOAH
- Color
- Black
- Power
- 12V1A
- Transmission distance
- Multimode ≤ 1KM singlemode ≤ 25KM
- Optical Interface
- FC
- Video channel
- 8
- is_customized
- Yes
