Описание

Supply voltage: 10~25VDC (DC) with anti-reverse protection
Power supply interface: DC2.1 seat
Bluetooth version: Bluetooth V4.2
Default Bluetooth device name: Xpecial Audio
Audio input method: wireless Bluetooth reception, USB decoding, audio input (3.5mm) stereo
color: red
Material: metal + pc
Support playback format: MP3, WMA, WAV, FLAC
FM radio: you need an external antenna, you need to use the remote control (the FM word pad on the board)
Pre-chip: NE5532
Amplifier chip: stereo channel TPA3116 (50W+50W) bass TPA3116 (BTL 100W)

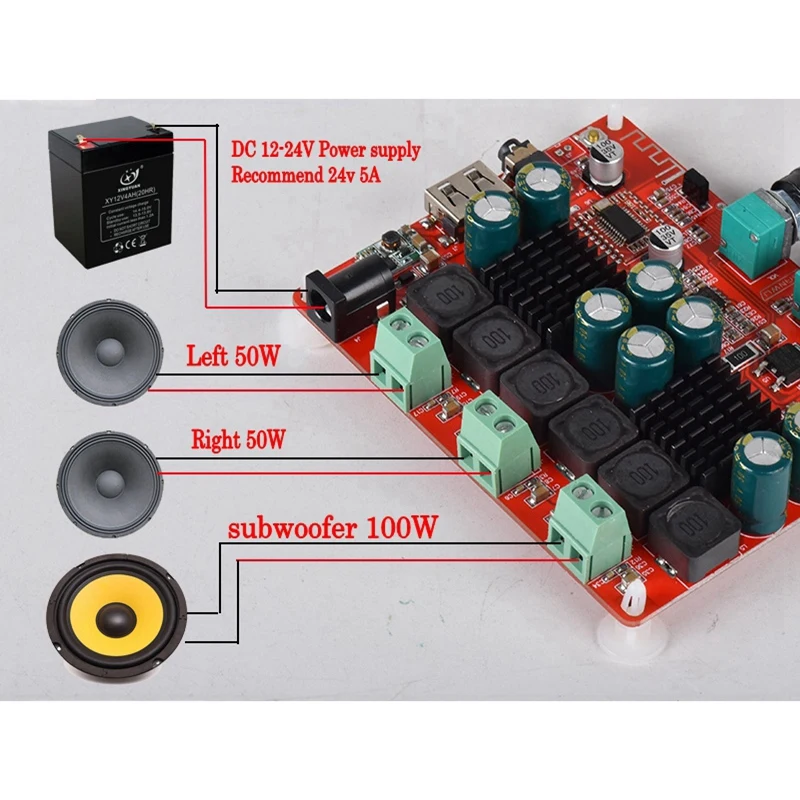

Output power: 50W+50W+100W (bass)
Adjustment knob: left and right channel output volume, bass crossover point, bass output volume
Board size: 97*78mm height about 22mm
Fixed hole size: 91*72mm
Weight: about 102 grams
Recommended power supply: 24VDC Greater than 5A (the power supply current is not enough. When the loud volume is large, the sound will be broken)
Speaker horn power is not very large, you can use 24V 3A power supply
Speaker impedance: 8 ohms is best, can also drive 4 ohms, 6 ohms, 8 ohms, etc.
Instructions for use: The power-on blue light flashes (the paired devices are automatically paired), and the external device can search for Bluetooth devices for pairing.
u disk, LINE IN (3.5mm), priority playback, remote control can switch audio input
Package Contents:

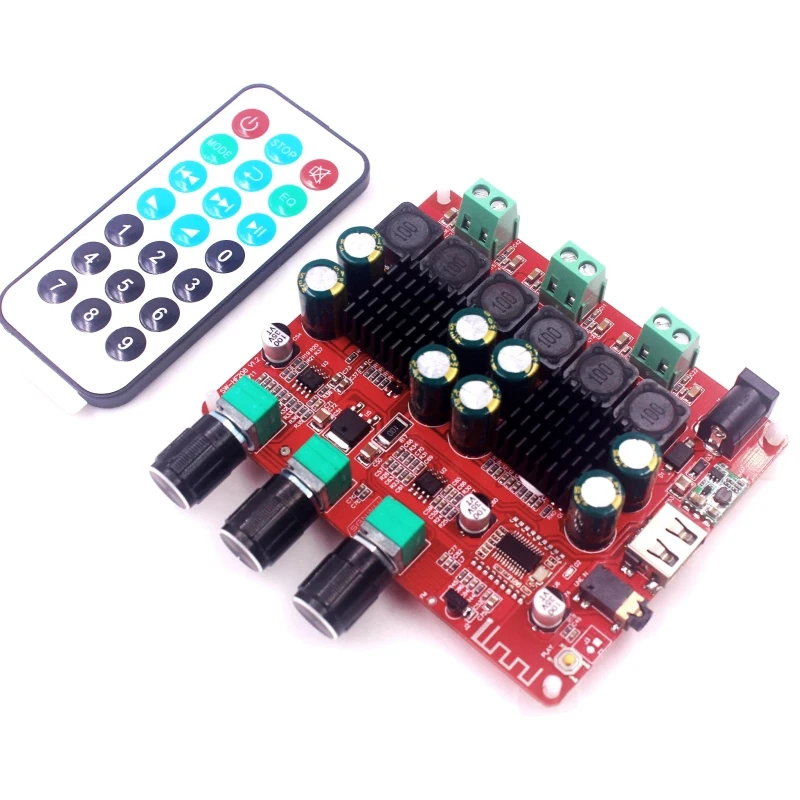

1pcs Amplifier Board
1pcs Remote controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Power supply interface: DC2.1 seat
Bluetooth version: Bluetooth V4.2
Default Bluetooth device name: Xpecial Audio
Audio input method: wireless Bluetooth reception, USB decoding, audio input (3.5mm) stereo
color: red
Material: metal + pc
Support playback format: MP3, WMA, WAV, FLAC
FM radio: you need an external antenna, you need to use the remote control (the FM word pad on the board)
Pre-chip: NE5532
Amplifier chip: stereo channel TPA3116 (50W+50W) bass TPA3116 (BTL 100W)
Output power: 50W+50W+100W (bass)
Adjustment knob: left and right channel output volume, bass crossover point, bass output volume
Board size: 97*78mm height about 22mm
Fixed hole size: 91*72mm
Weight: about 102 grams
Recommended power supply: 24VDC Greater than 5A (the power supply current is not enough. When the loud volume is large, the sound will be broken)
Speaker horn power is not very large, you can use 24V 3A power supply
Speaker impedance: 8 ohms is best, can also drive 4 ohms, 6 ohms, 8 ohms, etc.
Instructions for use: The power-on blue light flashes (the paired devices are automatically paired), and the external device can search for Bluetooth devices for pairing.
u disk, LINE IN (3.5mm), priority playback, remote control can switch audio input
Package Contents:
1pcs Amplifier Board
1pcs Remote controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

|

Весь продукт мы можем отгрузить в течение 5-8 рабочих дней, обычно мы в зависимости от времени заказа клиента для упаковки и отгрузки, мы должны тщательно проверить качество товара перед отправкой, поэтому потребуется некоторое время для обработки. Время доставки: Из-за форс-мажорных факторов: ураганы, дождевые штормы влияют на полеты. Что приводит к задержкам в логистике. Мы честные продавцы, не дадим вам потеряться. Пожалуйста, дайте логистической компании немного времени на обработку, мы ждем, пока посылка дойдет до вашей стороны. Если ваша информация о логистике поступает в местное почтовое отделение: Если местное почтовое отделение не свяжется с вами, пожалуйста, свяжитесь с местным почтовым отделением как можно скорее, чтобы получить посылка. В противном случае, при сверхурочном получении посылок, местное почтовое отделение вернет вашу посылку, что является причиной самоответственности. Время защиты заканчивается: Когда мы закончили отгрузку, если срок защиты продукта истекает, пожалуйста, Продлите срок защиты продукта самостоятельно или свяжитесь с нами, пожалуйста, не открывайте спор напрямую. Ввозные таможенные пошлины: Налоги и сборы не включены в стоимость товара или стоимость доставки. Ответственность за эти расходы несет покупатель. Ввозные таможенные пошлины, налоги и сборы не включены в стоимость товара или стоимость доставки. Ответственность за эти расходы несет покупатель




Если товар поврежден, мы должны связаться в течение 24 часов с момента получения.
Если данный товар находится в вашем распоряжении более 7 дней, он считается пользованным товаром, и мы не производим возврат или замену. Если вы не удовлетворены полученным товаром (неправильный, поврежденный, дефектный или не соответствующий описанию), пожалуйста, верните его в течение 7 дней для замены или возврата денег.По каким-либо личным причинам (выберите недоверие или мне больше не нужен этот товар), возврат расходы по доставке будет нести ответственность покупателя. Мы не принимаем любые предметы с запахами (духи. Дым, и т. Д.)
Все товары ДОЛЖНЫ возвращаться в оригинальной упаковке. Кроме того, НЕОБХОДИМО ПРЕДОСТАВИТЬ номер отслеживания посылки, конкретную причину возврата и ваш номер заказа.Характеристики
