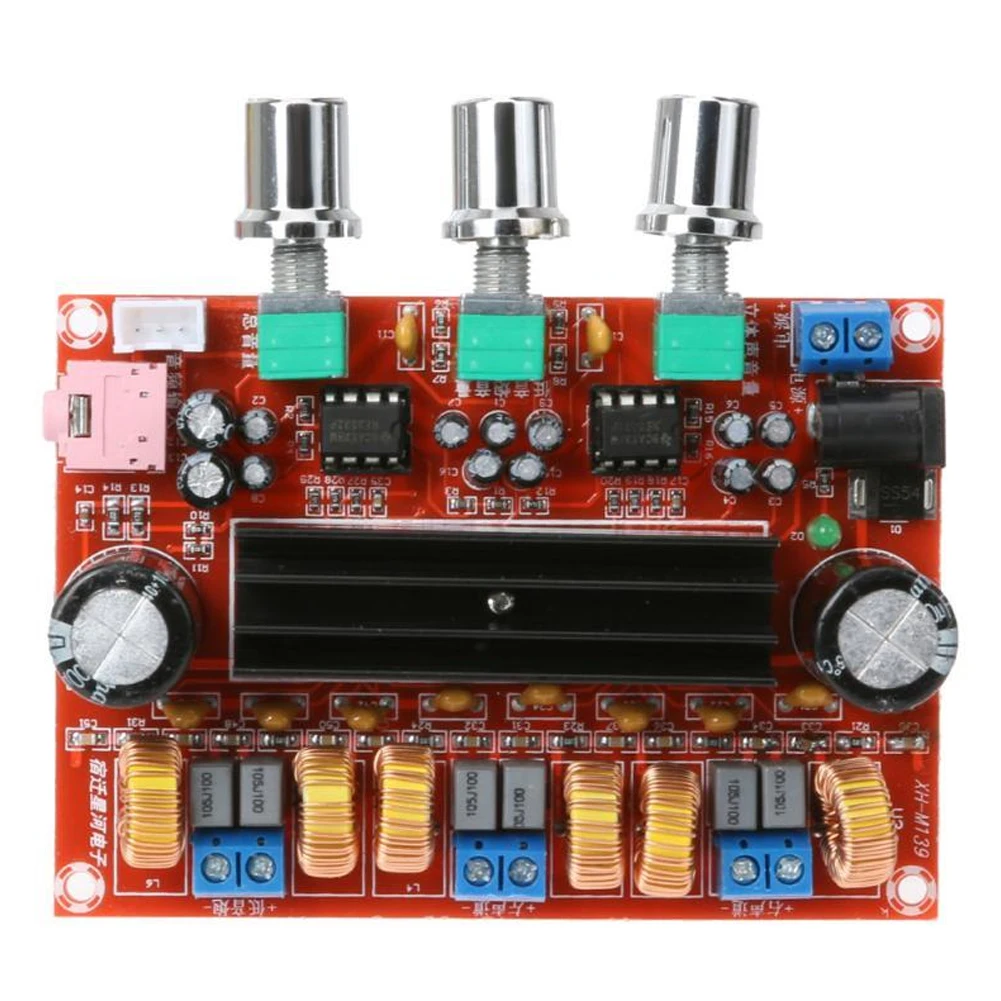

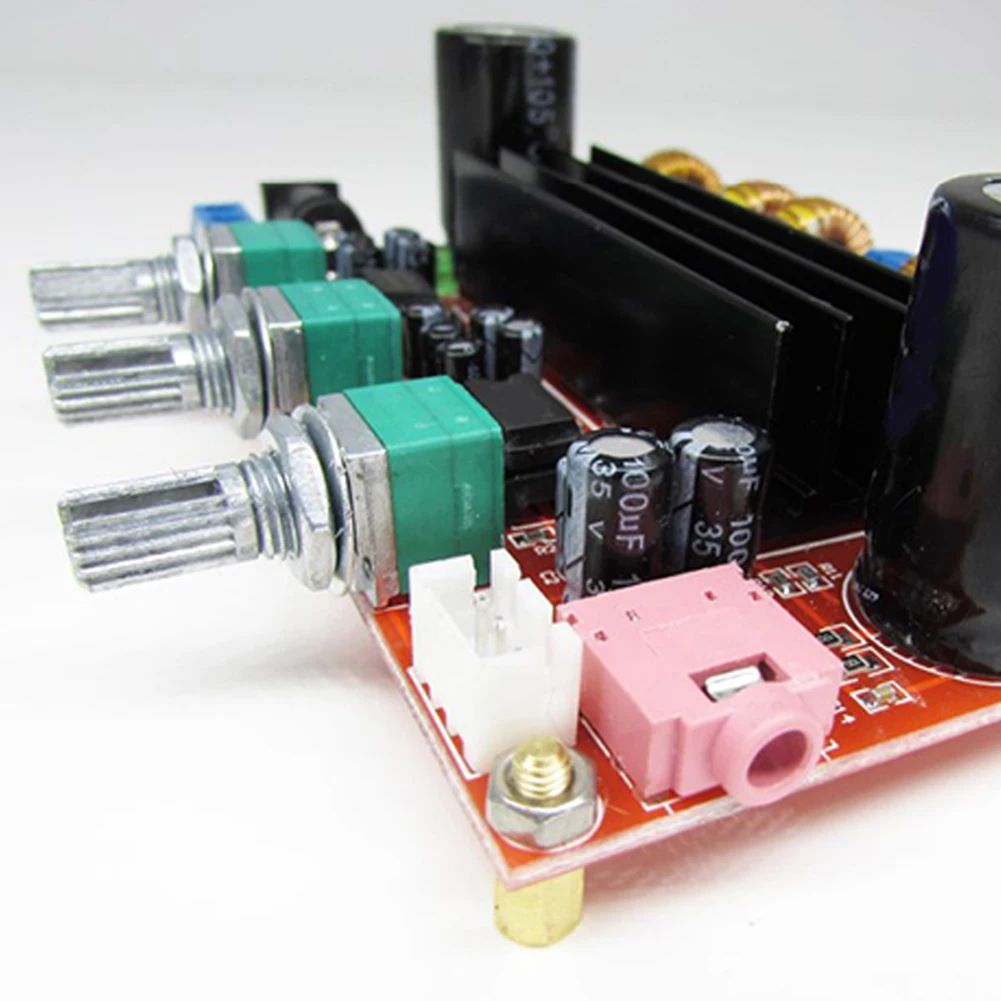

TPA3116D2 50Wx2+ 100 Вт 2,1 Channe Высокоэффективный цифровой сабвуфер усилитель мощности модули плат мощный усилитель мощности

Description

Using High quality tpa3116d2 digital power amplifier chip.

With good sound quality, high efficiency, strong power amplifier.

50W * 2 + 100W with 2.1 channels (left / right channel and heavy bass track), high efficiency and low heat.

Adopt D C 12-24V driver, wide voltage input.

Users can easily adjust the volume.

Just connect the power and speakers that you can enjoy pure digital music.

Specifications:

Type: Digital amplifier module

Supply voltage: D C 12-24V

Chip: TPA311602 * 2

Channel: 3 channel (left, right, bass)

Output power: 50W * 2 + 100W * 1 subwoofer

Output matching: 4-8 ohm

Audio output: terminal

Frequency response range: 14-100khz

SNR: 100db

Switching frequency: 1.2mhz

Size: approx. 100*70*30mm/39.37 *27.56 *11.81inch

Package Included:

1 x Digital amplifier module

1 Set Screws

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.
