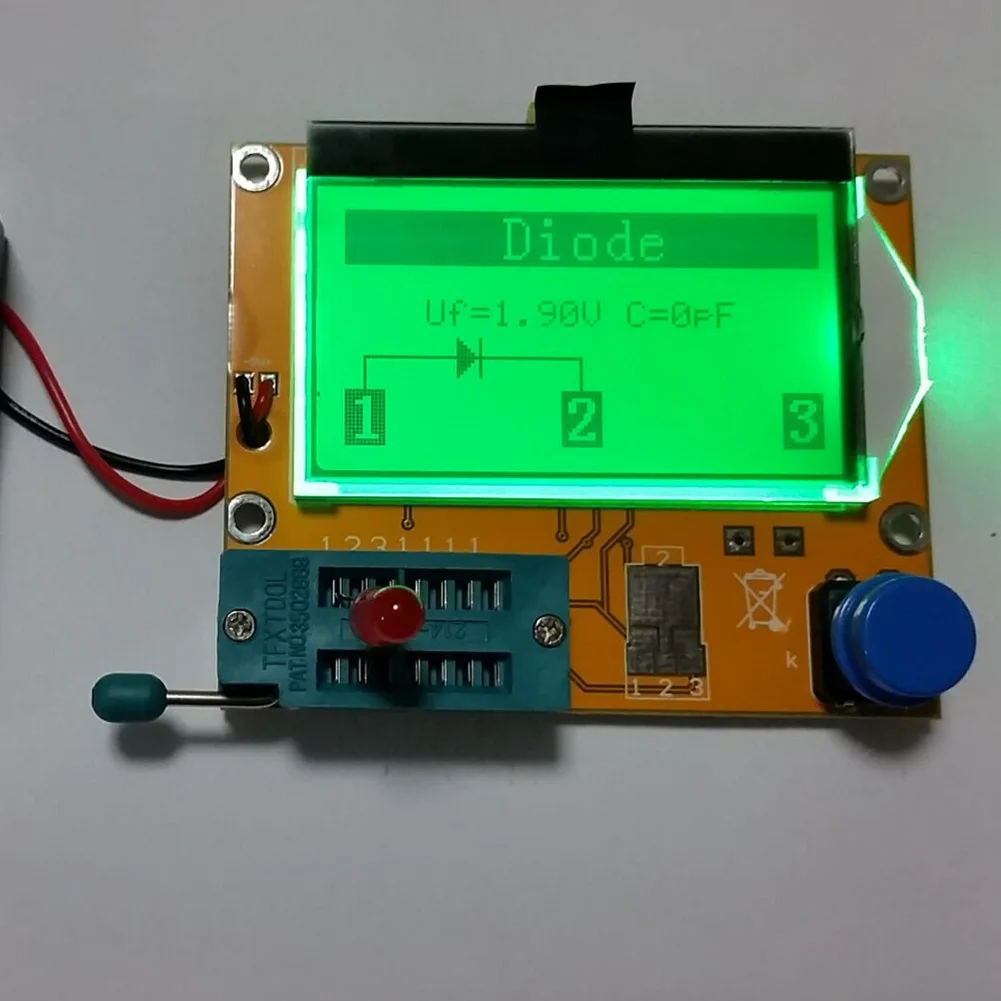

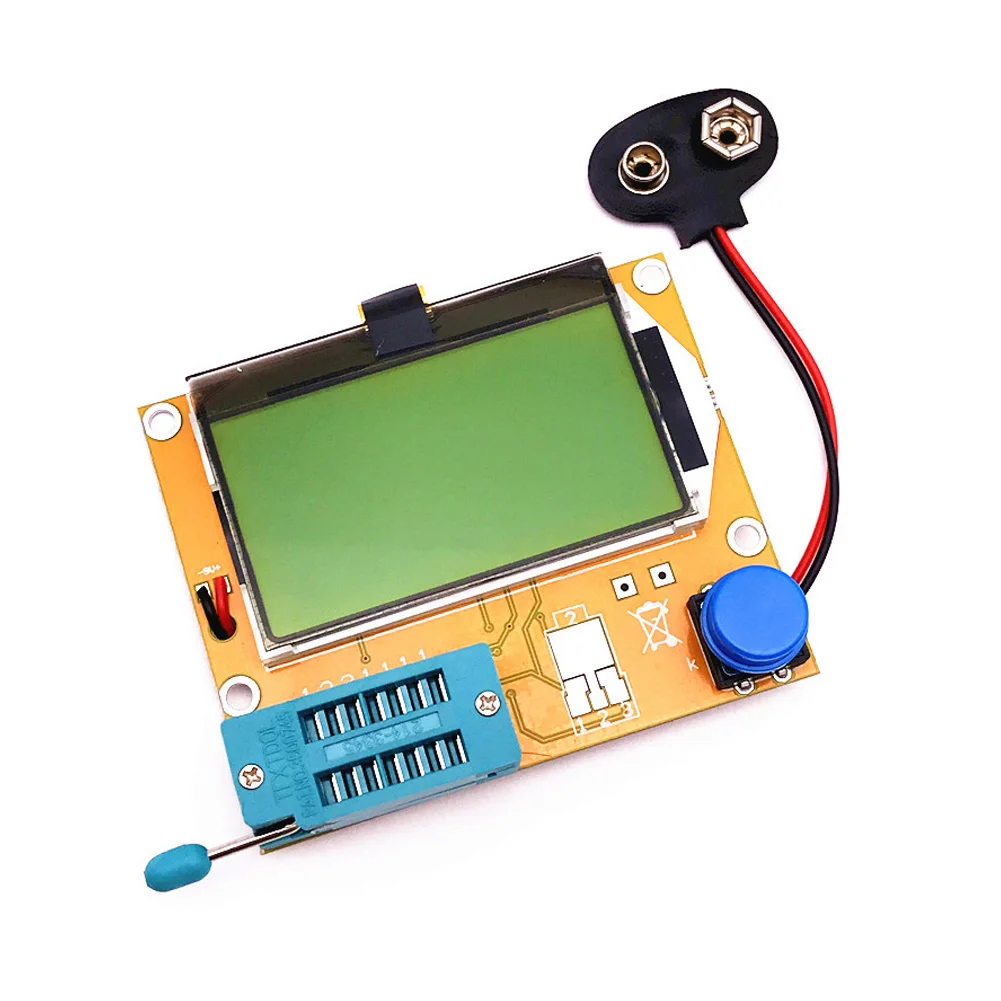

ТРАНЗИСТОР индуктивности многофункциональная установка для измерения параметров конденсаторов lcd дисплей резистор графический

Features:
Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, transistors, resistors and capacitors.
The component's pins are automatically tested and displayed on the LCD.
The amplification factor and the base of the transistor, MOSFET protection diode, etc. can be detected to determine the forward bias voltage of the emitter transistor.
MOSFET that measures gate threshold voltage and gate capacitance.
The monitor uses 128 * 64 LCD (128 * 64 characters).
Higher test speed, expiration component test: in 2 seconds (except for larger capacitors, the measurement of large capacitance still takes a long time, the measurement time is 1 minute is normal)
One-button operation, boot test, one button to get.
Power consumption off mode: less than 20 nA
The automatic shutdown function can avoid unnecessary waste, save battery energy and improve battery life.
Specifications:
Material:Plastic+Metal
Power Consumption Off Mode: Less than 20nA
Capacitor Measure Range: 25pf -100mf
Inductance Measure Range: 0.01mh-20H
Resistance Measure Range: 0.1Ω resolution, maximum 50M Ω
LCD:128*64
LCD Display Color:Yellow-green
Size(L×W×T):Approx.60×70×15mm
Power: 9V battery (If longer power, you can use pack consisting of two 8.4V lithium battery)
Note:
Battery is not included

Package included:
1 × Transistor Tester
1 × Acrylic shell
