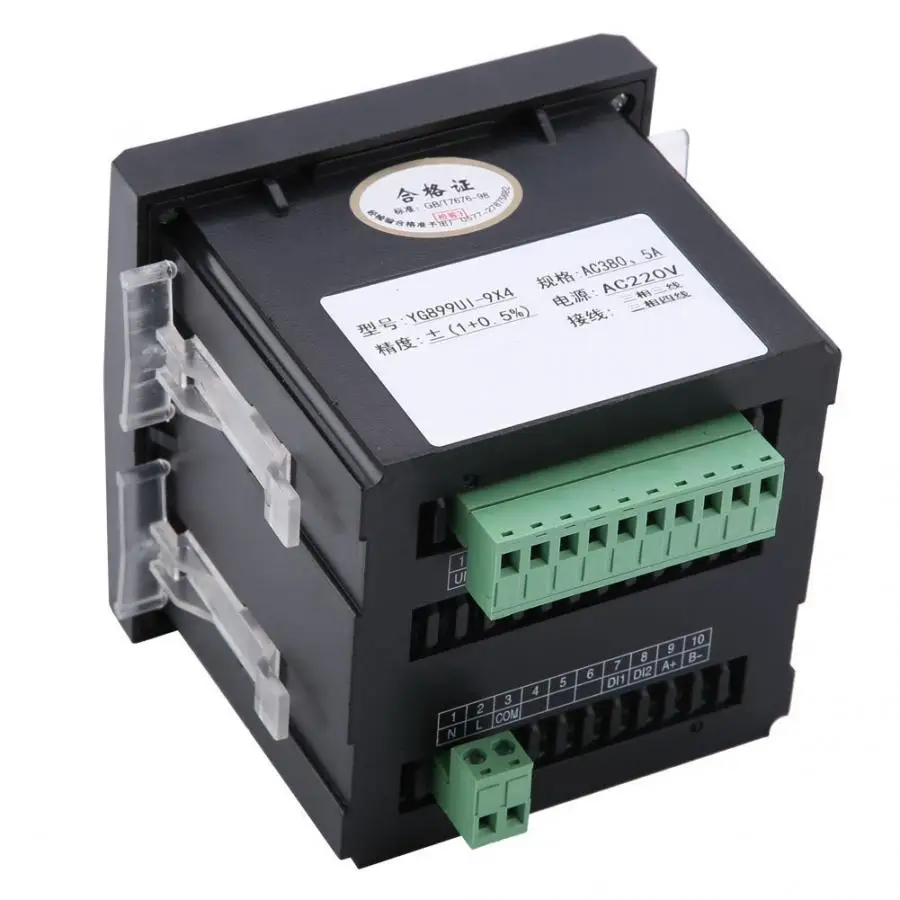

Digital Three-phase Multi-Function Voltage Current Meter Voltmeter Ammeter Smart Instrument

Features:

Digital three-phase ammeter & voltmeter is a kind of smart instrument which can program measurement , display, alarm, digital communications and analog quantity output, widely used in substation automation, electrical automation, intelligent buildings, machinery, equipment, etc. True RMS measure, high precision, good stability.The instrument transformer ratio can be set by button, convenient and flexible for use. Three rows of four-digit highlighted red Lro shows three phase current or voltage value directly. Optional 1 or 2 channel relay alarm output, to realize upper and lower limit alarm function; Optional RS-485 digital communication interface, it uses international standard MODBUS-RTU communication protocol, can realize network with a variety of PLC, HMI, configuration software. Optional 1 or 3 channel analog quantity (DC0~20mA, DC4~20mA, DC0~5V, DC1~5V, DC0~10V, etc.) analog output, analog quantity output is isolated with input signal, which has a linear corresponding relation.

Specification:

Parameter			Performance
Signal input	Voltage	Range	AC57. 7V/AC100V/AC220V/450V/AC600V
		Overload	Continuous: 1.2 times, instantaneous: 2 times / 1s
		Power Consumption:	<1VA
		Impedance	>380KΩ
	Current	Range	AC10A/5A/1A
		Overload	Continuous: 1.2 times, instantaneous: 10 times / 5s
		Power Consumption	<1VA
		Impedance	<20mQ
	Frequency		45-65HZ
Auxiliary power			Linear power supply: AC220V±5%; Power consumption < 3VA
			switch power supply: AC/DC85-265V or DC10-36V; power consumption < 3VA
Relay Output			1 or 2 channel output, contact capacity: 1A/220VAC; 1A/24VDC
Analog Output			DC0 ~ 20 mA, DC4 ~ 20 mA, DC0 ~ 5V, DC1 ~ 5 V, DC0 ~ 10 V
RS485 communication			KS485 communication interface, physical isolation,
			Accord with international standard MODBUS-RTU protocol communication baud rate of 2400 ~ 9600, data format N81, E81, 081, N82
Precision class			class 0.2, class 0.5
Display			Digital display: Three rows of four-digit high brightness LED display
Environment			Operating temperature: -10~55℃ Storage temperature: -20~75℃
Security			Insulation: signal, power supply, resistance of output terminal to shell > 5MΩ voltage resistance: among signal input, power supply, output > AC2KV

Package list:
1 * Meter
